2021-2024 Ford F-150 4WD 0-2.75 Inch Lift Stage 1 Suspension System Icon Vehicle Dynamics

Part #: K93111

ICON Vehicle Dynamics 2021-2024 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.The Stage 1 system includes vehicle-specific tuned 2.5 Inch coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle Inchfeel Inch through the range of travel. These coilovers are also height adjustable from 0-2.75 Inch allowing the use of larger, more aggressive wheel and tire combinations.ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2024 F-150 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.Features and Benefits:Increased wheel travel and ride quality over stock with no change in towing capacity2.0 aluminum body rear IFP shock with 5/8 Inch polished shaft100 Percent Bolt-on system - no drilling, cutting, or welding necessary for installUnique valving developed for 2021-2024 F-150Vehicle specific tuned front and rear shocks for superior damping and vehicle controlAdjustable coilovers from 0-2.75 Inch of lift height6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated coilover shock body with 7/8 shaftHigh strength alloy CNC machined lower bar pinFK rod end bearings for extended longevity and minimal deflectionDetailsActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoils Quantity Front: 2.0Front Shock Body Diameter: 2.5Grade Type: PerformanceMaximum Lift: 2.75 InchMaximum Lift Front: 2.75 InchMinimum Lift Front: 0.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRear Shock Body Diameter: 2.0Recommended Aftermarket Tires: 33 Inch X 11.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)Recommended Aftermarket Wheels: Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm Offset, Icon Alloys - 17x8.5 Inch W/ 5 Inch Backspace / 6mm OffsetReservoir Style: InternalShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 198000 - 2 Pin Coilover Spanner Wrench Kit, 198001 - Billet Spanner Wrench Kit

Features:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• 2.0 aluminum body rear IFP shock with 5/8" polished shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Unique valving developed for the lighter weight of the 2021-2022 F-150
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers from 0-2.75" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection

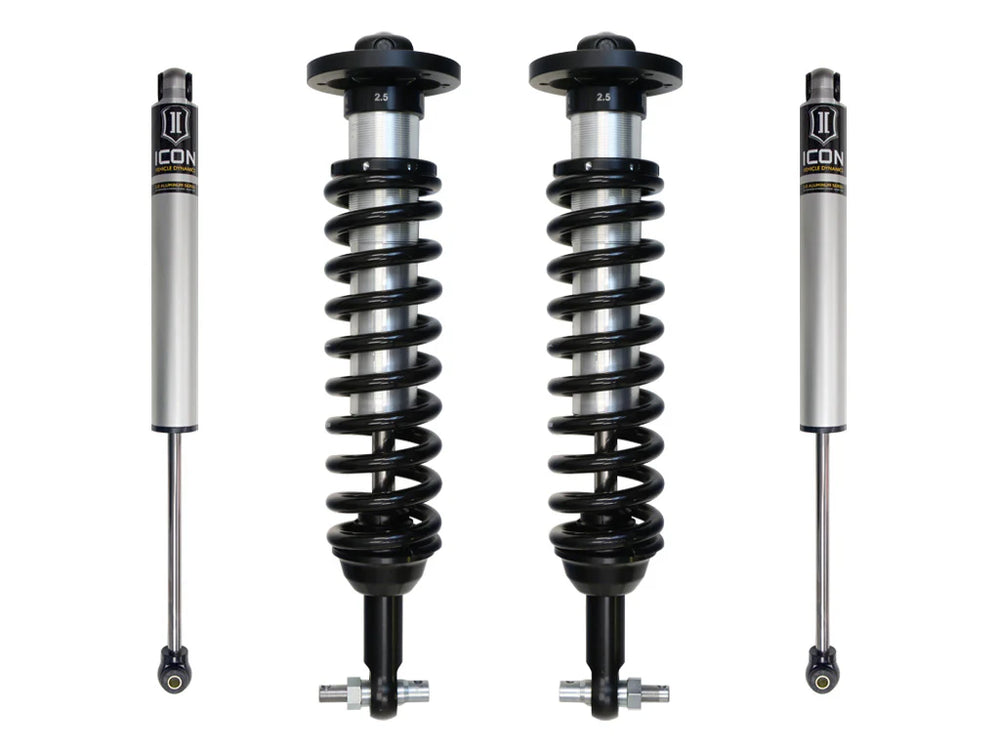

Stage 1 includes 2.5" coilovers with internal reservoirs with height adjustability from 0-2.75" of lift. ICON 2.0 Aluminum Series monotube rear shocks balance the performance of the truck from front to rear.
