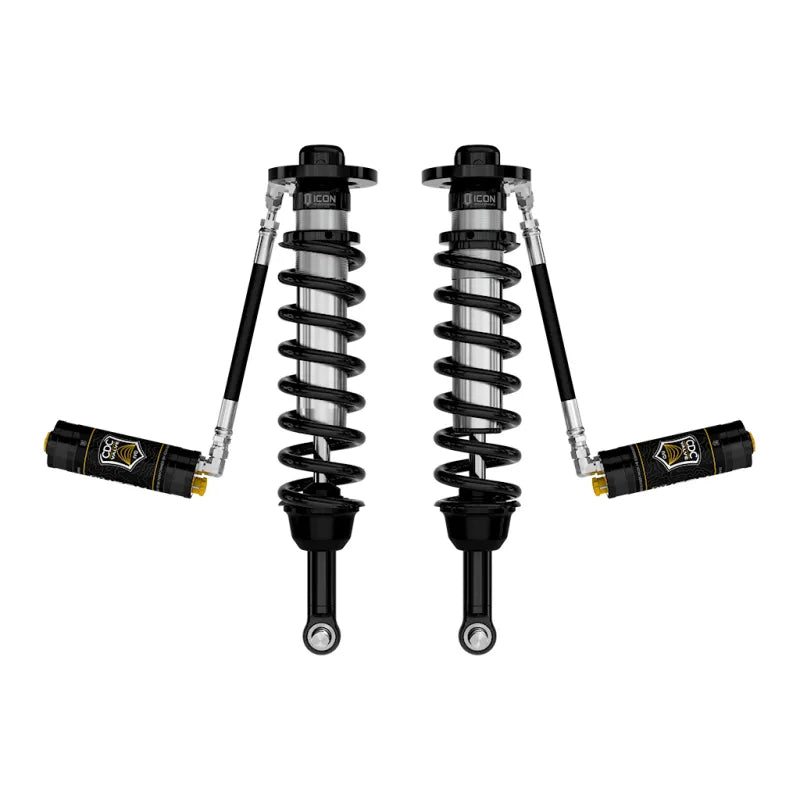

2021-2024 Ford F-150 4WD 2.75-3.5 Inch Lift Front V.S. 2.5 Series Coilovers Remote Reservoir W/ CDCV Pair Icon Vehicle Dynamics

Part #: 91825C

ICON Vehicle Dynamics V.S. Series 2.5 Inch coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 4WD trucks.ICON's Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5 Inch of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain.Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance.CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.Features and Benefits:Increased wheel travel and ride quality over stockFK rod end bearings for extended longevity and minimal deflectionVehicle specific tuned for superior shock damping and controlAdjustable for 2.75-3.5 Inch of lift height over stockRemote reservoir to attain cooler operating temperatures during extended off-road useICON CDCV equipped for 10 settings of external compression damping adjustmentICON engineered coil Springs6061 Aircraft grade aluminum CNC machined componentsCorrosion resistant CAD plated shock body with 7/8 Inch shaftHigh strength alloy CNC machined lower bar pin100 Percent Bolt-on - no cutting or welding necessary for installationDetailsMaterial: Steel, AluminumActive Or Passive Suspension: PassiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 2.5 InchCoil Over Springs Included: YesCompressed Length: 18.67Cylinder Color: SilverCylinder Finish: Cadmium PlatedCylinder Material: SteelDamping Adjustment Type: ManualDamping Type: OilDust Shield Included: NoExtended Length: 23.88Front Spring Rate: 550 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: YesInternal Construction Type: Single TubeLower Mount Type: Bar PinMaximum Lift: 3.5 InchMaximum Ride Height Raising Distance: 3.5Minimum Lift: 2.75 InchOem Wheels & Tires Fitment: YesRecommended Aftermarket Tires: 34 Inch X 12.50 Inch (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required)Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 Inch W/ 5.00 Inch Backspace / 6mm Offset, Icon Alloys - 20x9 Inch W/ 5.625 Inch Backspace / 16mm Offset, Icon Alloys - 18x9 Inch W/ 5.25 Inch Backspace / 6mm OffsetRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 252011 - 2.5 Piggyback/Remote Resi/Bypass Rebuild Kit, 611019 - Coilover Hardware Kit Pair, 252003 - Seal Install Tool 2.5/3.0, 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 252001 - 2.5 Fixed Spanner Wrench, 254100G - 1 Gallon Icon Performance Shock OilShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 5.22Upper Mount Type: Mounting PlateValving Type: DigressiveAdd On Part: 198000 - 2 Pin Coilover Spanner Wrench Kit, 98523Dj - 21-24 F150 Billet UCA Dj Pro Kit, 252012 - -4 To -10 Hose Shield Kit, 98522Dj - 21-24 F150 Tubular UCA Dj Pro Kit, 198001 - Billet Spanner Wrench Kit, 191009 - Icon Long 2.5 Coil Wrap W/Logo (14.5-15.5), 97720Cp - 09-24 F150 2/4Wd 04-08 F150 4Wd Rear 2.5 Vs Pb Cdcv Pair

Features:

• Increased wheel travel and ride quality over stock
• FK rod end bearings for extended longevity and minimal deflection
• Vehicle specific tuned for superior shock damping and control
• Adjustable for 2.75-3.5" of lift height over stock
• Remote reservoir to attain cooler operating temperatures during extended off-road use
• ICON CDCV equipped for 10 settings of external compression damping adjustment
• ICON engineered coil Springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• 100% Bolt-on - no cutting or welding necessary for installation

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock's larger 2.5" body and increased piston area improves damping ability and ride characteristics across varying types of terrain.
