2022-2025 Toyota Tundra 0-1.5 Inch Lift 2023-2025 Sequoia 0-4 Inch Lift Rear V.S. 3.0 Series Shock Absorbers Remote Reservoir W CDEV Pair Icon Vehicle Dynamics

Part #: 57845EP

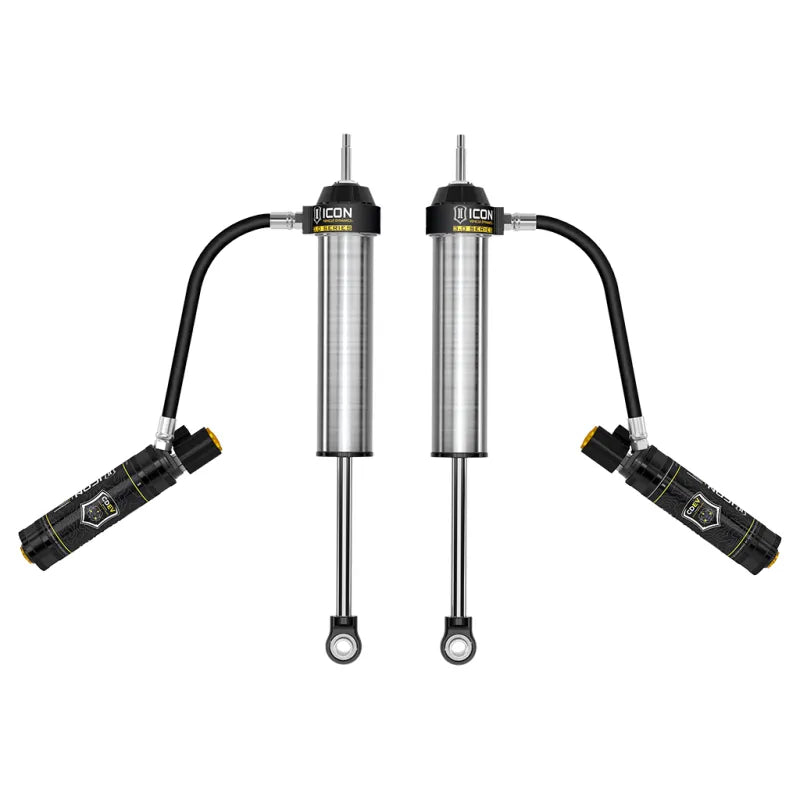

ICON's 3.0 Series Rear Shocks with CDEV for 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 20 Percent and significantly improving the damping ability of the rear shocks, while being compatible with rear lift heights up to 1.5 Inch over stock on Tundra or up to 4 Inch of rear lift on Sequoia.Features and Benefits:3.0 Series shocks boast 50 Percent more piston surface area compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. Increased internal oil volume and more external surface area compared to 2.5 Series Shocks offer improved heat dissipation and resistance to shock fade under hard use.ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5 Inch over stock on Tundra or up to 3 Inch of rear lift on Sequoia, allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)20 Percent increase in rear suspension travel compared to stockCompatible with up to 1.5 Inch of rear lift on most Tundra models or 3 Inch of lift on SequoiaVehicle specific design and tuning for superior shock damping and control3.0 Inch Body diameter for increased oil volume and larger piston areaCNC machined 6061 aluminum components with a black anodized finishPTFE lined spherical bearings for extended longevity and minimal deflection7/8 Inch diameter induction hardened, chrome plated shock shaftsCorrosion resistant CAD plated steel shock bodiesFully Rebuildable and Re-tunableDetailsActive Or Passive Suspension: ActiveAdjustable: YesAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoBoot Included: NoBore Diameter: 2.75Cylinder Color: GreyCylinder Diameter: 3.0Cylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilExternal Reservoir: YesGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoLower Mount Type: EyeletMounting Hardware Included: YesReservoir Type: RemoteService Parts: 254100G - 1 Gallon Icon Performance Shock OilShaft Diameter: 0.875Shaft Material: ChromeShock Absorber Body End Measuring Point: Shoulder Of StemShock Absorber Rod End Measuring Point: Center Of EyeletTube Outside Diameter: 3.0Upper Mount Type: StemValving Type: Linear/DigressiveAdd On Part: 252012 - -4 To -10 Hose Shield Kit, 58770E - 22-25 Tundra/23-25 Sequoia 2.5 VS RR CDEV Coilover Kit, 53508 - 22-25 Tundra/23-25 Sequoia Iic Install Kit, 58775E - 22-25 Tundra/23-25 Sequoia 3.0 VS RR CDEV Coilover Kit

Features:

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• 20% increase in rear suspension travel compared to stock
• Compatible with up to 1.5" of rear lift on most Tundra models or 3" of lift on Sequoia
• Vehicle specific design and tuning for superior shock damping and control
• 3.0" Body diameter for increased oil volume and larger piston area
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearings for extended longevity and minimal deflection
• 7/8" diameter induction hardened, chrome plated shock shafts
• Corrosion resistant CAD plated steel shock bodies
• Fully Rebuildable and Re-tunable

ICON VS 3.0 Series shocks are designed and built to give your vehicle maximum performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable. CDCV allows for damping adjustment.
