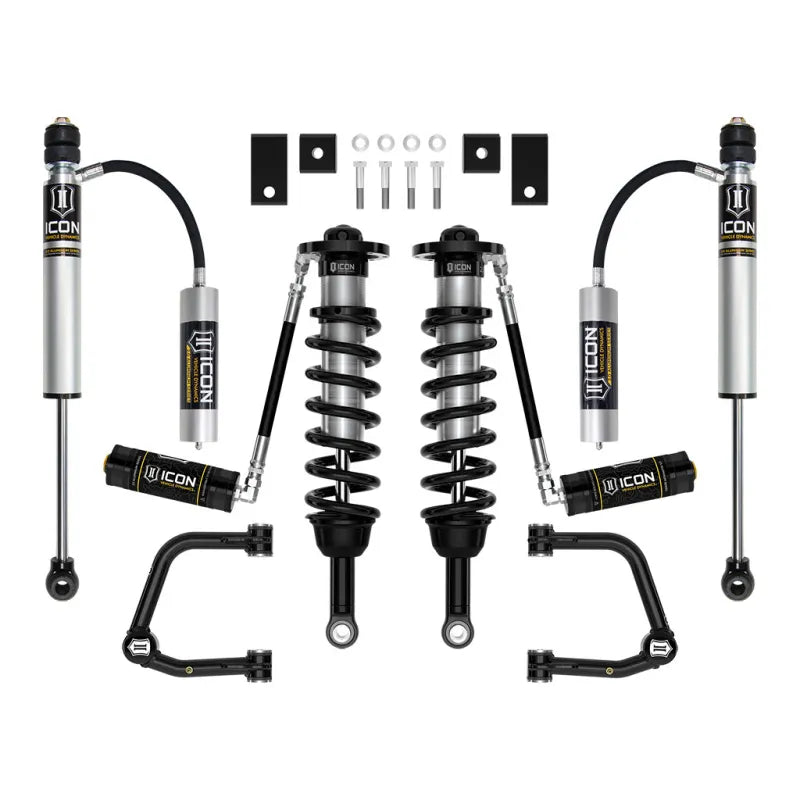

2022-2025 Toyota Tundra 2-3.5 Inch Lift Stage 6 2.5 Suspension System Tubular Icon Vehicle Dynamics

Part #: K53196T

The ICON Vehicle Dynamics Stage 6 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 5 system with the upgrade of the 2.5 Series front coilovers to remote reservoir versions. This system offers improved on- and off-road performance, with greater front and rear shock heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35 Inch tires.To compliment the remote reservoir coilover shock and tubular control arm combo, a sway bar drop kit for the front of the truck is included along with our proven 2.0 nitrogen charged monotube shocks with remote reservoirs for the rear.Features and Benefits:This Stage 6 system features the 2022-2025 Toyota Tundra VS 2.5 Series remote reservoir front coilovers. These adjustable coilovers allow up to 2-3.5 Inch of lift height adjustability over stock when using the ICON tubular front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON's Vehicle-specific shock length and valving along with the larger 2.5 Inch shock body and increased piston area over stock components yield the maximum travel possible (up to 40 Percent increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.The included ICON tubular upper control arm kit is designed to improve the overall performance of the new 2022-2025 Toyota Tundra with corrected front-end geometry, built in additional caster, and improved suspension component clearance. Additionally, replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind.The included sway bar drop brackets help minimize sway bar link bind through the suspension travel range. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.Rounding out the Stage 6 suspension system are V.S. 2.0 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2025 Tundra. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Their pairing with the ICON V.S. 2.5 Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.Vehicle specific design for 2022-2025 Toyota Tundra2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock coolingAdjustable front ride heights from 2-3.5 Inch of front lift over stock when used with included tubular UCAsTubular UCAs for added strength, durability, and alignment correction for better drivabilityUCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulationIncluded sway bar drop brackets reduce bind in OE sway bar linksAllows for up to 40 Percent increase in front wheel travel over stock without overstressing OE components2.0 Aluminum Series rear remote reservoir shocks provide balanced tune with coilovers and increased performanceAll ICON shock absorbers are fully rebuildable and re-tunable100 Percent Bolt-on system - no cutting or welding necessary for installDetailsActive Or Passive Suspension: PassiveAdjustable Compression: NoAdjustable Control Arm: NoAdjustable Damping: NoAdjustable Rebound: NoBushings Included: YesCoil Quantity Front: 2.0Coils Quantity Front: 2.0Front Reservoir Style: RemoteFront Shock Body Diameter: 2.5Front Spring Rate Type: LinearGrade Type: PerformanceMaximum Lift: 3.5 InchMaximum Lift Front: 3.5 InchMinimum Lift Front: 2.0 InchMounting Hardware Included: YesOem Wheels & Tires Fitment: YesRear Reservoir Style: RemoteRear Shock Body Diameter: 2.0Recommended Aftermarket Tires: 35 Inch X 12.50 Inch (Minor Fender Trimming And Modifications May Be Required)Recommended Aftermarket Wheels: 17x8.5 Inch W/ 5.75 Inch Backspace / 25mm OffsetReservoir Style: RemoteShocks Included: YesSpring Color: BlackSpring Material: SteelAdd On Part: 191013 - Nipple Greasing Adapter Kit, 191003 - Icon Short 2.5 Coil Wrap W/Logo Pair (11.25-12.25), 56111 - 22-25 Tundra Rear Hyd Bump Stop Kit, 56112 - 22-25 Tundra/23-25 Sequoia/24-25 Gx550 Rear Foam Bump Stop Kit, 198000 - 2 Pin Coilover Spanner Wrench Kit, 56113 - 22-24 Tundra/23-24 Sequoia Front Foam Bump Stop Kit, 252012 - -4 To -10 Hose Shield Kit, 55156 - 22-25 Tundra/23-25 Sequoia/24-25 Gx550 Diff Drop Kit, 198001 - Billet Spanner Wrench Kit, 55164 - 22-25 Tundra/23-24 Sequoia Aluminum Skid Plate Spacer Kit

Features:

• Vehicle specific design for 2022-2023 Toyota Tundra
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 2-3.5" of front lift over stock when used with included tubular UCAs
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.0 Aluminum Series rear remote reservoir shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable
• 100% Bolt-on system - no cutting or welding necessary for install

Stage 6 includes 2.5 Series coilovers for 1.25-3.5" of front lift, better off-road performance and 35" tire fitment. Tubular UCAs provide alignment correction and 2.0 Series remote reservoir rear shocks balance the tune from front to rear.
