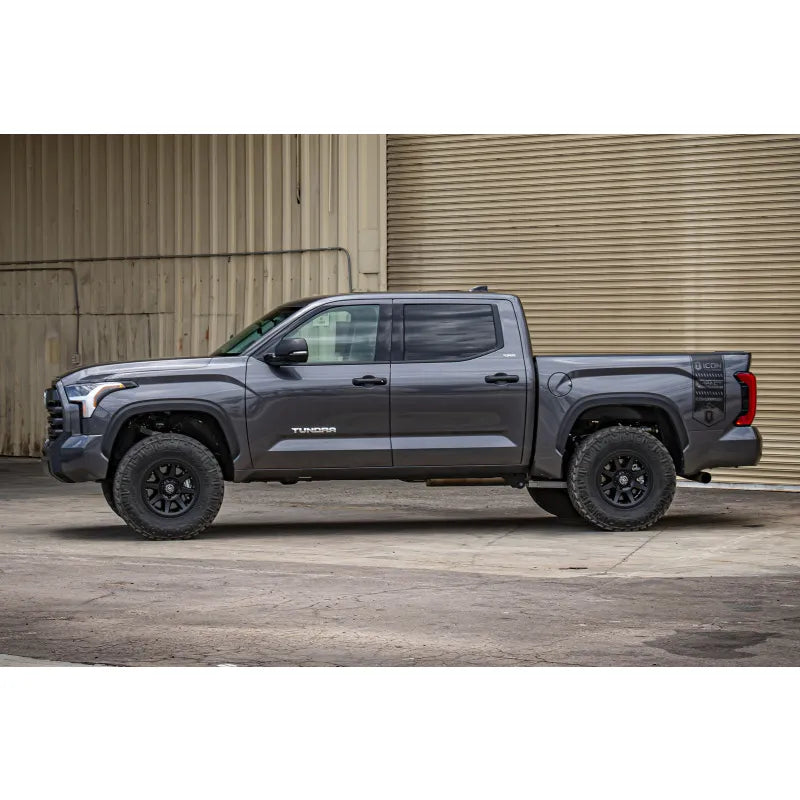

2022-2025 Toyota Tundra 1.25-3.25 Inch Lift 2023-2025 Sequoia 3-4.25 Inch Lift V.S. 3.0 Series Front Coilover Kit Remote Reservoir W CDEV Pair Icon Vehicle Dynamics

Part #: 58775E

ICON's 3.0 Series Coilovers with CDEV for 2022-2025 Toyota Tundra and 2023-2025 ToyotaSequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 40 Percent and significantly improving the damping ability of the front shocks.Features and Benefits:3.0 Series shocks boast 50 Percent more piston surface area in the ride zone of the shock's travel, and 100 Percent in the InchBump Zone Inch, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40 Percent of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles.ICON's exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV's hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25 Inch of front lift height on Tundra or 3-4.25 Inch of front lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.40 Percent increase in front wheel travel over stockAdjustable up to 1.25-3.25 Inch of front lift height over stock on Tundra or 3-4.25 Inch of front lift on SequoiaVehicle specific design and tuning for superior shock damping and control3.0 Inch Body diameter for increased oil volume and larger piston areaICON's multi-stage, tunable hydraulic InchBump Zone Inch exponentially increases bottom-out resistance in the last 40 Percent of compression travelICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)CNC machined 6061 aluminum components with a black anodized finishPTFE lined spherical bearings for extended longevity and minimal deflection7/8 Inch diameter induction hardened, chrome plated shock shaftsFully Rebuildable and Re-tunableDetailsMaterial: Aluminum, SteelActive Or Passive Suspension: ActiveAdjustable Compression: YesAdjustable Damping: YesAdjustable Rebound: NoAdjustable Ride Height: YesAssembled: YesBody Diameter: 3 InchCoil Over Springs Included: YesCompressed Length: 16.38Cylinder Color: GrayCylinder Finish: Ceramic CoatedCylinder Material: SteelDamping Adjustment Type: ElectronicDamping Type: OilDust Shield Included: NoExtended Length: 22.04Front Spring Rate: 600 InchGas Charged: YesGrade Type: PerformanceIncludes Bump Stop: NoInternal Construction Type: Single TubeLower Mount Type: EyeletMaximum Lift: 3.25 InchMaximum Ride Height Raising Distance: 3.25Minimum Lift: 1.25 InchOem Wheels & Tires Fitment: YesRemote Reservoir: YesReservoir Style: RemoteSelf Leveling: NoService Parts: 254100G - 1 Gallon Icon Performance Shock OilShaft Diameter: 0.875Shock Absorber Body End Measuring Point: Top Of Upper Mount PlateShock Absorber Rod End Measuring Point: Center Of EyeletSpring Color: BlackSpring Material: SteelSpring Rate Type: LinearTravel Length: 5.67Upper Mount Type: Mounting PlateValving Type: Linear, DigressiveAdd On Part: 57845EP - 22-25 Tundra 0-1.5 Inch/23-25 Sequoia 0-4 Inch Rear 3.0 VS RR CDEV Pair, 53508 - 22-25 Tundra/23-25 Sequoia Iic Install Kit, 57840EP - 22-25 Tundra 0-1.5 Inch/23-25 Sequoia 0-4 Inch Rear 2.5 Vs CDEV Rr Pair, 252012 - -4 To -10 Hose Shield Kit

Features:

• 40% increase in front wheel travel over stock
• Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
• Vehicle specific design and tuning for superior shock damping and control
• 3.0" Body diameter for increased oil volume and larger piston area
• ICON's multi-stage, tunable hydraulic Bump Zone" exponentially increases bottom-out resistance in the last 40% of compression travel
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearings for extended longevity and minimal deflection
• 7/8" diameter induction hardened, chrome plated shock shafts
• Fully Rebuildable and Re-tunable

ICON's Vehicle-specific shock length and valving along with the larger 3.0" shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.
