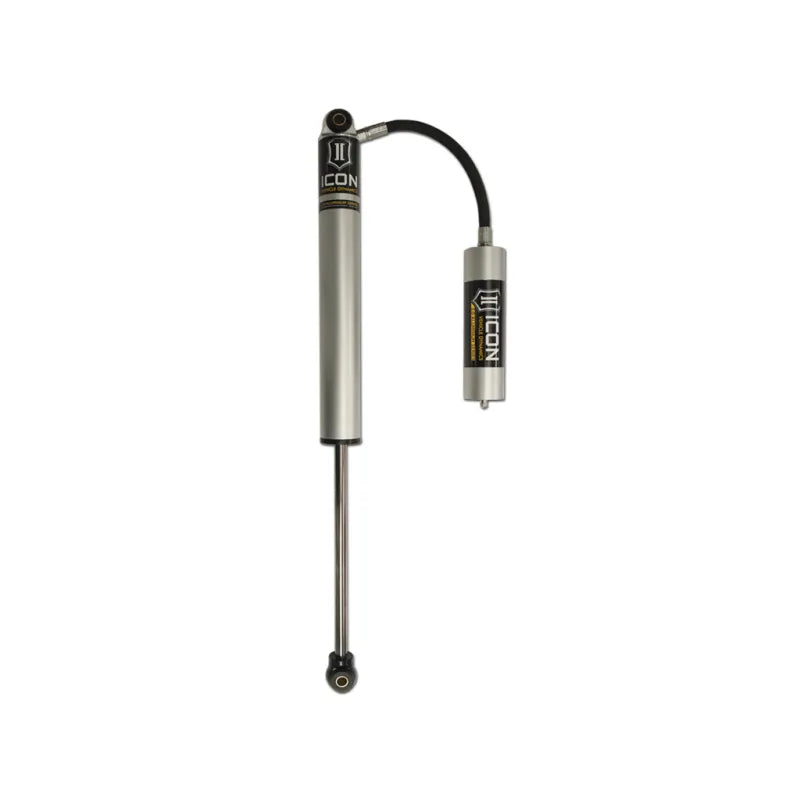

Universal 2.0 Aluminum Series Front Shock Remote Reservoir 9.5 Inch Travel Icon Vehicle Dynamics

Part #: 206512R

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance.Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100 Percent rebuildable and 100 Percent revalveable.For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.Features and Benefits:Premium grade 5WT shock oil for consistent suspension damping along a wide temperature rangeNitrogen charged monotube design with remote reservoirOne piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road5/8 Inch chrome plated hardened steel shaft resists corrosion and pits6061 aluminum rod end, top cap, and internals ensure strength and durabilityPolyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitmentApplication-specific reservoir mounting hardware6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearanceNitrile rubber top out bumper for noise free operation100 Percent rebuildable100 Percent revalveableDetailsMaterial: Steel, AluminumFinish: AnodizedAdjustable Damping: NoBody Color: GrayBody Diameter: 2 InchBoot Included: NoBushing Color: BlackBushing Included: YesBushing Material: PolyurethaneCoil Over Springs Included: NoCompressed Length: 13.55Cylinder Material: AluminumDust Shield: NoDust Shield Included: NoExtended Length: 23.0Gas Charged: YesGrade Type: PerformanceHydraulic Lockout: NoIncludes Bump Stop: NoInternal Construction Type: Single TubeInternal Rebound Bumper: YesLower Mount Type: EyeletMounting Width: 1.5 Inch X 1/2 Inch Bolt (Upper&Lower)Remote Reservoir: YesService Parts: 252002 - Universal Spanner Wrench (2.0/2.5/3.0), 254101G - 1/2 Gallon Icon Performance Shock OilShaft Diameter: 0.625Shaft Material: ChromeShock Absorber Body End Measuring Point: Center Of EyeletShock Absorber Rod End Measuring Point: Center Of EyeletShock Stroke: 9.45Travel Length: 9.45Upper Mount Type: EyeletAdd On Part: 614600 - 2.0 Icon Billet Resi Clamp Kit, 252012 - -4 To -10 Hose Shield Kit

Features:

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8" chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• Application-specific reservoir mounting hardware
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• 100% rebuildable
• 100% revalveable

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved performance.
