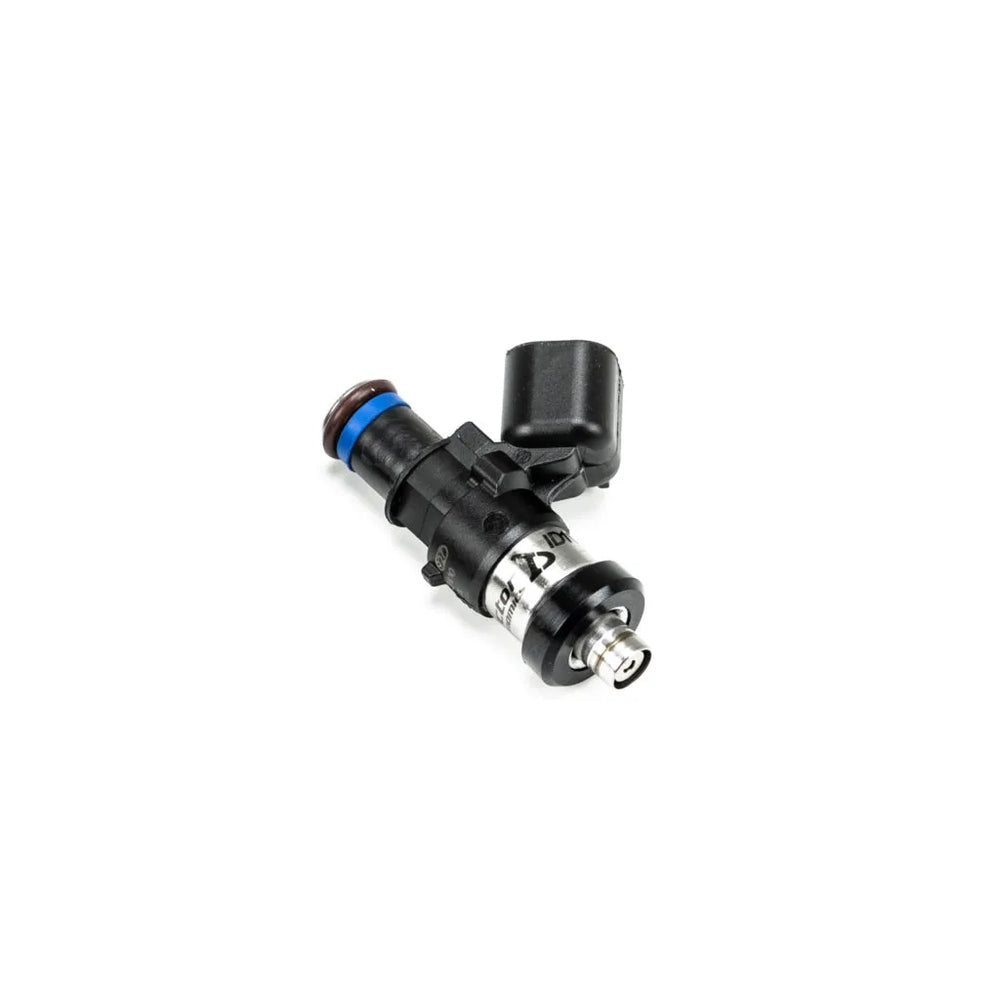

ID1050-XDS Fuel Injector

The Denso ID1050-XDS is a high-impedance fuel injector engineered for motorsport tuning and optimization. This injector represents an evolution of the popular ID1050x, incorporating Dual Slope Matching technology. This advanced matching method ensures flow rate consistency in both linear and nonlinear operating ranges, leading to superior cylinder-to-cylinder balance, especially at low pulse widths. The ID1050-XDS is built with corrosion-resistant internals, making it compatible with all types of fuels and ensuring an extended service life even when used with aggressive fuel blends. The compact body design of the ID1050-XDS allows it to fit within a wide range of engine bays, accommodating over 200 different applications, including those that require short-body injectors. It is designed to operate reliably under demanding conditions, with a stronger magnetic circuit that supports stable performance up to 10 bar of fuel pressure. The injector features a 34mm length, an 11mm machined top, and a Denso lower cushion, utilizing a standard USCAR electrical connector for broad compatibility. Key specifications for the ID1050-XDS include a nominal flow rate of 1065cc/min at 3.0 Bar (43.5 psi) using gasoline at 52 degrees C (125 degrees F), and a maximum differential fuel pressure capability of 10.0 Bar (145.0 psi). It is compatible with all known fuels. Injector Dynamics injectors are flow-matched in sets, and special arrangements for single injector replacements can be made by contacting their support. The focus on optimization makes these injectors ideal for motorsport enthusiasts seeking to maximize engine performance and reliability.
