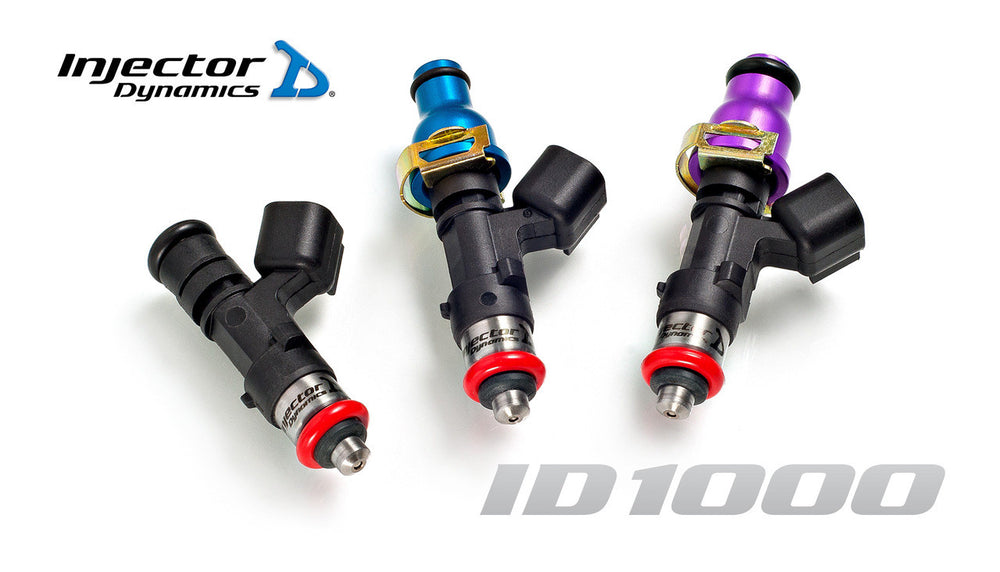

ID1050XDS Fuel Injector

The Injector Dynamics ID1050XDS fuel injectors represent a significant evolution from the original ID1000 model, born from extensive development with Bosch Motorsport. With a nominal flow rate of 1065cc/min at 3.0 bar (43.5 psi) using gasoline at 52 degrees C (125 degrees F), these injectors offer a substantial upgrade for engines exceeding 230whp in naturally aspirated builds. They feature corrosion-resistant internals, ensuring compatibility with all known fuels and extended service life. The injectors operate with a maximum differential fuel pressure of 10.0 bar (145.0 psi) and utilize a USCAR electrical connector with an EV6/EV14 type. These injectors are specifically designed for K-series engine applications and feature a 48mm body length with a 14mm grey adapter top. They are compatible with KPower intake manifolds in both RBB and PRB configurations. If you are ordering a wiring harness from KPower Industries, ensure you specify the need for the correct injector clip style or sub-harness to match these injectors.
