IDP T4 S366 Complete Turbo Kit

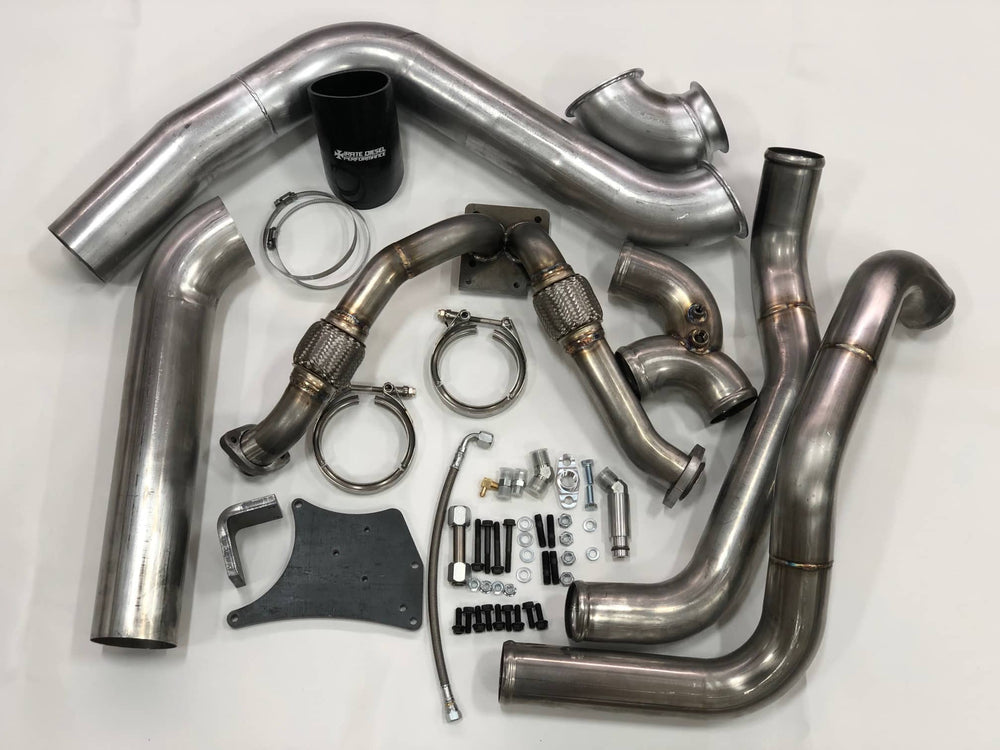

The Irate Diesel Performance IDP T4 S366 Complete Kit is engineered for drivers seeking a turbo system that offers excellent driving characteristics and towing performance, targeting the 500hp mark. This comprehensive kit includes the S366 turbocharger and the full IDP T4 mounting system, complete with 304ss up-pipes and intercooler piping. This kit includes a wide array of components for a complete installation. Key parts include a pedestal, L-bracket, bellowed up-pipe assembly, braided oil supply line, stainless steel oil drain line, aluminum turbo and valley drain flanges, stainless steel intake Y, intercooler pipes (2 for SD, 3 for OBS), a 4-inch stainless intake pipe, and a downpipe (3-inch for OBS, 4-inch for SD). Firewall modifications may be necessary for downpipe installation, depending on body mount conditions. Additionally, 1994-1997 trucks require an electric fuel system and 3-inch intake plenums to utilize this T4 kit. An optional bypass tube is available for 1994-1997 trucks that prefer not to install an intercooler. Choosing this option substitutes the intercooler pipes with boots and a pipe for seamless connection to the intake Y without an intercooler, requiring 3-inch plenums.
