In-Dash Control Module - 4 Switch

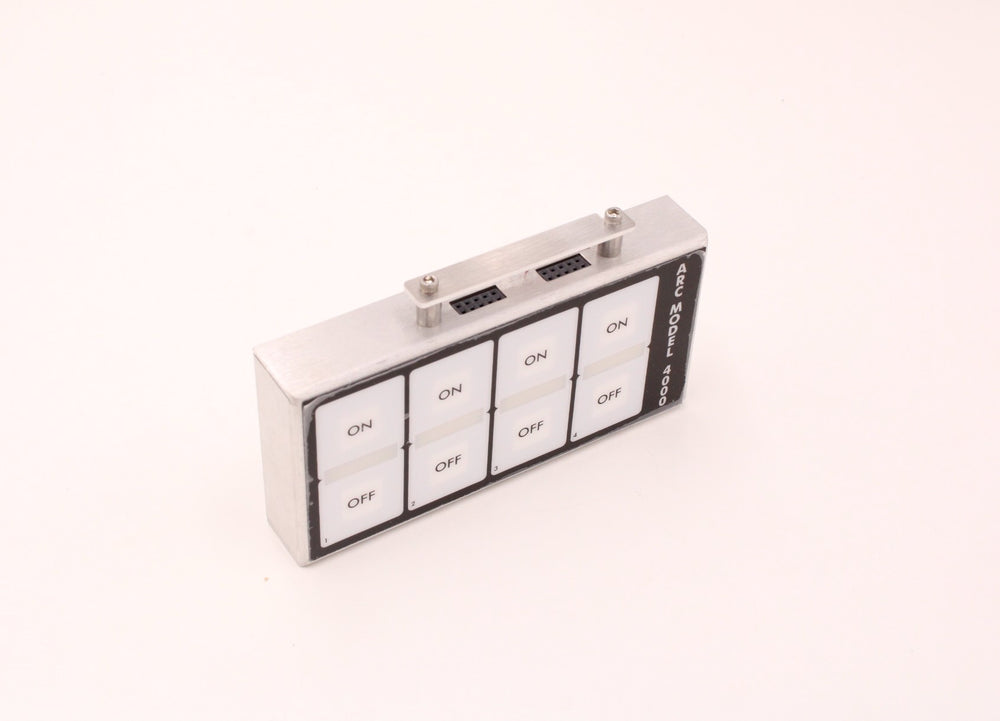

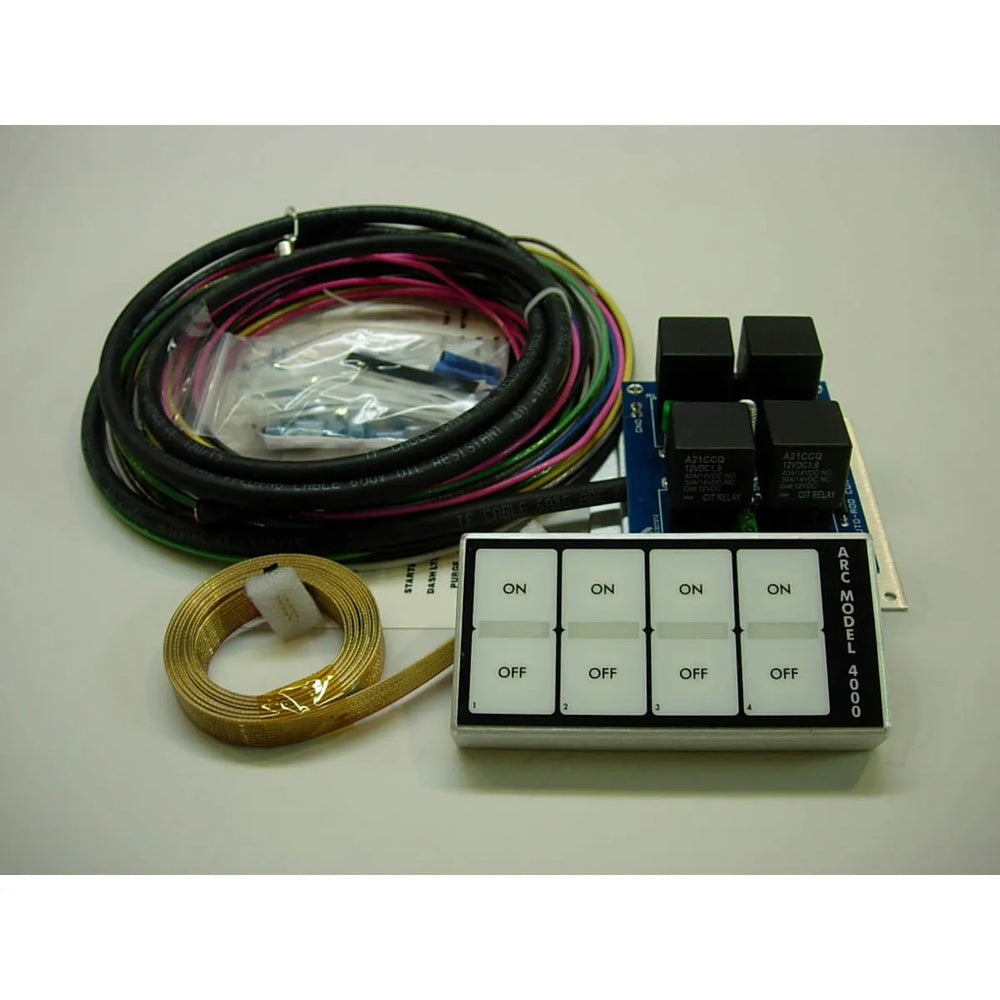

This is a 4 Switch Control Module with dimensions of 4-7/8” L x 2-3/8” H x 3/4” D. It is a complete system that includes a switch panel, relay board, and wiring harness. It is available in roll bar or dash mount versions and in four different finishes (white, black, carbon fiber white faceplate, carbon fiber black faceplate). The unit is 11/16” Thick front to back, 16V Compatible, and features LED light bars (Red off – Green on). It comes with a library of 58 race & street labels to backlight over light bars and duplicate words in white for relays. Any switch location can be configured for on/off or push action momentary. It includes a master kill switch for ultimate safety, turning off any, none, or all switches simultaneously. Installation does not require dash cutting as units Velcro mount to the dash. It eliminates the bundle of wires coming down the roll bar and accepts a firewall keypad to run the first 4 switches from under the hood. It also features cable connector retaining brackets and carries a lifetime warranty. Each unit ships with a wiring harness, label kit, and connector kit. Optional Auxiliary Fuse/Relay sections are available, which can be controlled by grounding inputs from ECU/EFI systems. All Flat Touch Controls are available with Super Bright LEDs.
