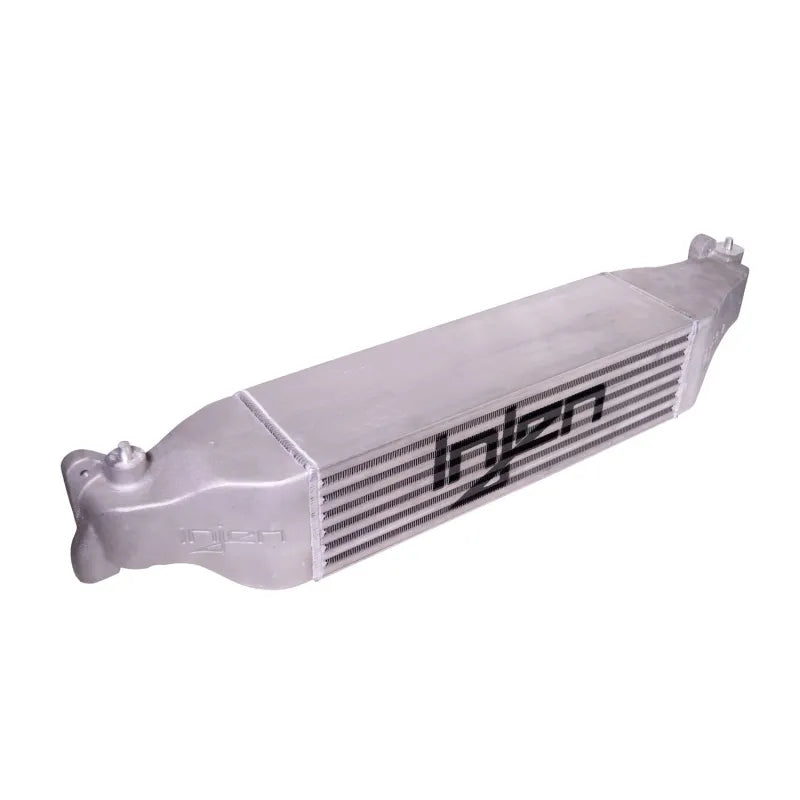

Injen 17-20 Honda Civic Type-R (FK8) I4 2.0L Bar and Plate Front Mount Intercooler

Part #: FM1582I

The all new Type-R Civic (FK8) is a great platform for soaking up highway miles during the weekday and tearing it up at the track on the weekend! With some minor modifications, the 2.0L Turbo engine is capable of producing some gnarly power. But, the added power of some tuning and bolt-ons will push the limits of the stock charge air system, necessitating an upgrade for the stock tube-and-fin intercooler, which is prone to heat soak. Thankfully Injen has developed a highly efficient bar-and-plate intercooler engineered specifically to fit the Type-R Civic. The FM1582i intercooler is a direct-fit unit and features a 25% increase in core volume while requiring no modification to your civic. This cooler is constructed with cast end tanks and precision CNC-machined aluminum flanges for use with the factory intercooler piping. The Injen Honda Civic Type-R intercooler reduces intake temperatures by 30 F and provides an increase of up to 27 HP and 23 Ft. Lbs. of torque while retaining factory boost pressure across the core. This Civic Type-R 2.0L turbo intercooler also features precision TIG-welding and has a unique silver finish that is reminiscent of brushed aluminum. With a one-hour installation, great power, temperature benefits, and a Lifetime Warranty, the Injen FM1582i intercooler is a must-do upgrade for any stock or modified Civic type-R.

Features:

• Dyno Proven gains of up to 27 hp and 23 lb-ft. of torque
• 100% Direct bolt-on front mount intercooler
• No piping included.
• Optional intercooler piping kit available. P/N# SES1582ICP
• CAD designed end tanks for optimal air flow.
• Intercooler core dimensions 21.06 x 5.750 x 5.28
• Designed to work with the stock calibration
• Optional intercooler piping kit available. Part # SES1582ICP
• Made in Pomona, California USA
• Injen Technology Limited Lifetime Warranty
• Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.

~(36 lbs. 24X13X8)~ 100% Direct bolt-on front mount intercooler with CAD designed end tanks for optimal air flow. CNC machined flanged ends to bolt to factory piping utilizing the O.E. hardware and O-rings. Intercooler core dimensions 21.06 x 5.750 x 5.28. Optional intercooler piping kit available. Part # SES1582ICP No piping included. Optional intercooler piping kit available. Part # SES1582ICP
