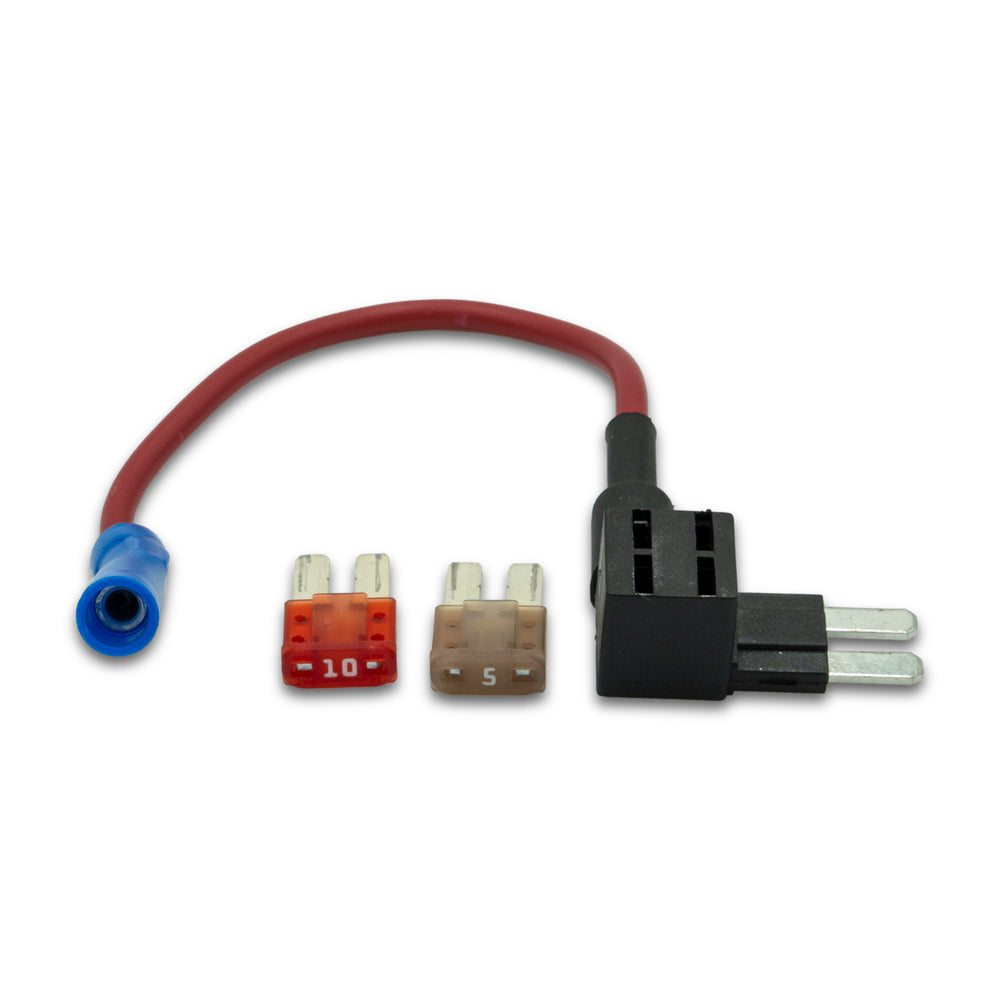

Inline Fuse Holder for MICRO2 Fuses

The Littelfuse FHM20200ZPA is an in-line fuse holder designed for MICRO2 fuses, providing a convenient way to add new circuits to a vehicle's electrical system. This "Add-A-Circuit" style holder allows for the installation of an accessory without the need for cutting or splicing into the existing wiring harness. This installation method is beneficial for maintaining new vehicle warranties. This fuse holder converts a single fuse slot into two, enabling the protection of both the new accessory circuit and the original circuit. It is constructed with a 16 AWG GXL wire lead, rated for 125°C, and includes red insulation. The wire is terminated with butt splice connectors for straightforward electrical connections. The fuse holder itself has a flammability rating of UL 94 V-0 and is ignition protected. The Littelfuse FHM20200ZPA is compatible with MICRO2 blade fuses and has a maximum current rating of 10 amps. The unit operates at a maximum DC voltage of 32 volts. This specific model is offered as a blister packaged kit that includes four MICRO2 fuses: 3A, 5A, 7.5A, and 10A, providing a complete solution for immediate use.
