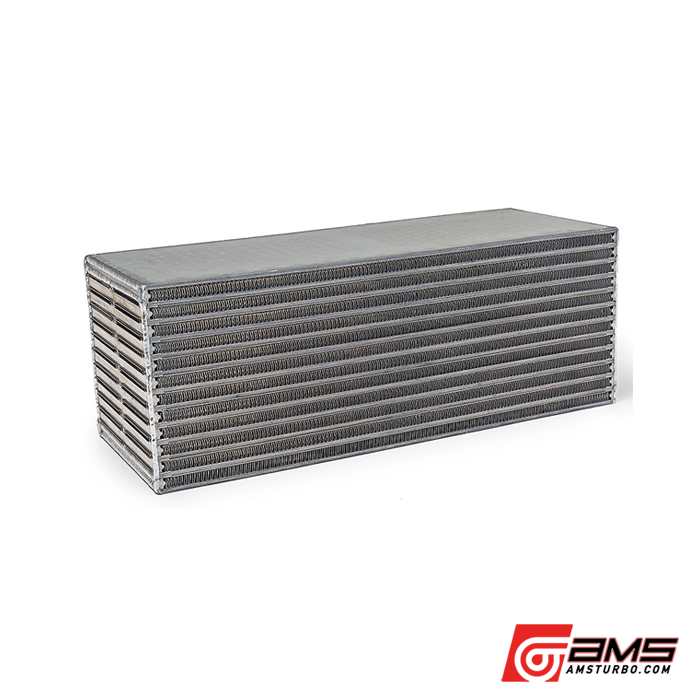

Intercooler Bar-and-Plate 1000 HP

It features a bar-and-plate construction with exceptionally thin bars and a high-density, offset-fin composition proven to efficiently reduce intake temperatures. This design offers superior fatigue protection for the demanding boost pressures and temperatures found in extreme engines. Garrett brings over 75 years of experience in charge air cooler design, making this core a choice for those seeking industry-leading technology. The core's dimensions are 122 mm (Hot Flow), 114 mm (No Flow), and 302 mm (Cold Flow), with a horsepower rating of 1000 hp. The design aims to optimize cooling and minimize pressure drop, a crucial factor in intercooler performance. It is recommended to "soft-mount" the intercooler using rubber isolation grommets to prevent vibration failure and reduce thermal expansion loads. While this is a universal core, proper fitment requires careful consideration of available space for custom end tanks. The goal is to use the largest core that can be properly integrated. For optimal performance, ensure consistent charge air flow through the core and tanks to maximize cooling efficiency and minimize pressure drop. The "Air-Water" model designation indicates its specific cooling system type.
