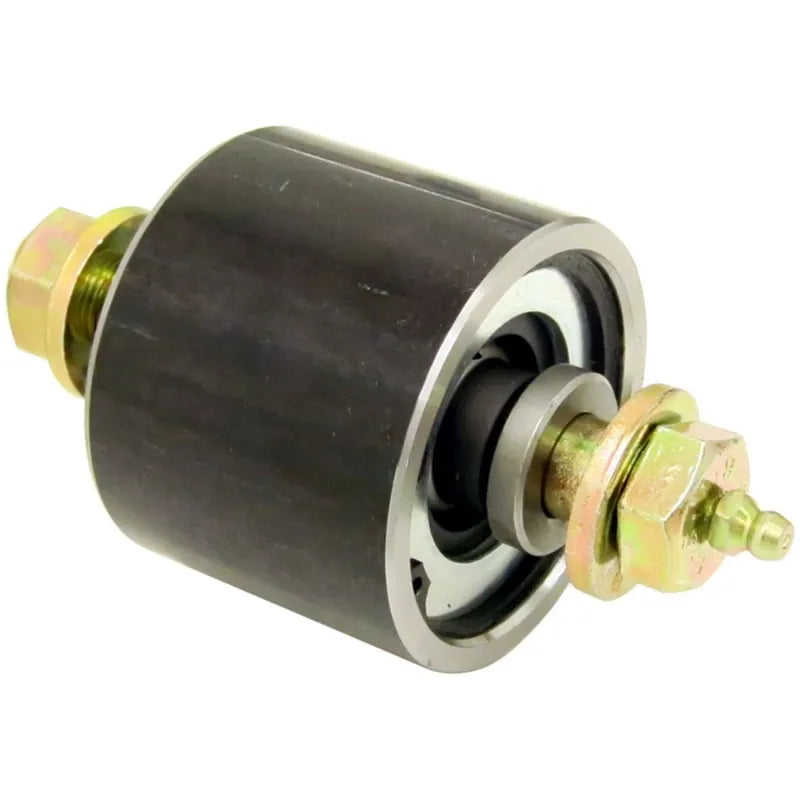

Johnny Joint Rod End 2 1/2 Inch Weld-On 2.440 Inch X 0.515 Inch Ball Internally Greased Includes Greasable Bolt Each RockJock 4x4

Part #: CE-9110-12

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.The outer shell is weldable .180 Inch wall machined DOM tubing. This specific joint is a 2 1/2 Inch o.d. and features a 2.440 Inch mounting width and a .515 Inch thru bolt hole. Grade 8 greasable bolt with nut and washers included.Details:Johnny Joint Rod End2 1/2 InchWeld-On2.440 Inch X 0.515 Inch BallInternally GreasedIncludes Greasable BoltEach

Johnny Joint (R) Rod End | 2.5 in. | Internally Greased | w/-12 Ball-Cross Drilled | 0.515 Hole X 2.440 OAW
