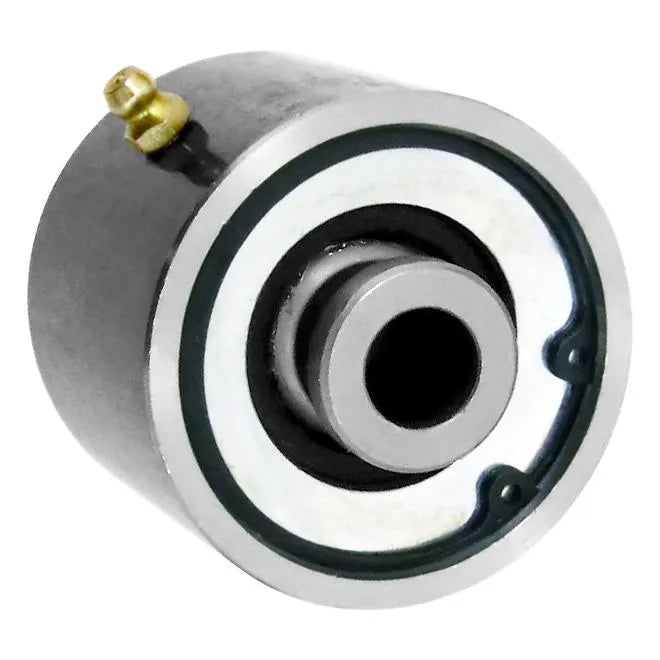

Johnny Joint Rod End 2 1/2 Inch Weld-On 2.625 Inch X 0.562 Inch Ball Externally Greased Each RockJock 4x4

Part #: CE-9110P

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.The outer shell is weldable .180 Inch wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 Inch o.d. and features a 2.625 Inch mounting width and a .5625 Inch thru bolt hole.Details: Johnny Joint Rod End2 1/2 InchWeld-On2.625 Inch X 0.562 Inch BallExternally GreasedEach

Johnny Joint (R) Rod End | 2.5 in. | 2.625 in. Mounting Width | Externally Greased | w/o Bolt | 0.5625 in. Thru Bolt Hole | Each
