Exterior Components› Body Panels and Components

Rock Jock

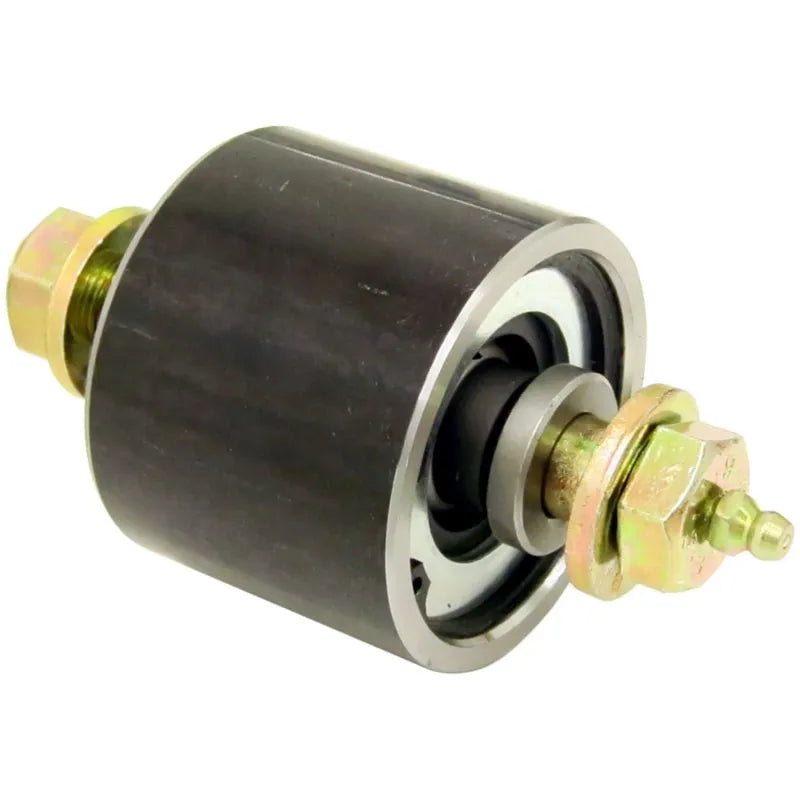

Johnny Joint Rod End 2 1/2 Inch Weld-On Chromoly Barrel 2.625 Inch X 0.562 Inch Ball Internally Greased Includes Greasable Bolt Each RockJock 4x4

$84.00

SKU: R01U CE-9110C

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping over $100
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Moderate — 2–4 hours

Description

Part #: CE-9110C

RockJock's weld-on chromoly Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.The outer shell is weldable .180 Inch wall machined chromoly tubing. This specific joint is a 2 1/2 Inch o.d. and features a 2.625 Inch mounting width and a .5625 Inch thru bolt hole. Grade 8 greasable bolt with nut and washers included.Details:Johnny Joint Rod End2 1/2 InchWeld-OnChromoly Barrel2.625 Inch X 0.562 Inch BallInternally GreasedIncludes Greasable BoltEach

Johnny Joint (R) Rod End | 2.5 in. | w/Chromoly Barrel/Greasable Bolt

MIA's Description

The Rock Jock Johnny Joint rod end is a weld-on component for fabricators and suspension system builders. It offers 30 degrees of unrestricted movement, surpassing the 22 degrees of a common heim joint. This rod end utilizes high-density urethane bushings to encase the inner ball, providing cushioning. The heat-treated center ball is cross-drilled for lubrication, and the joint is retained by two heavy-duty side washers and a snap ring.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandRock Jock
Part NumberR01U CE-9110C
