Exterior Components› Body Panels and Components

Rock Jock

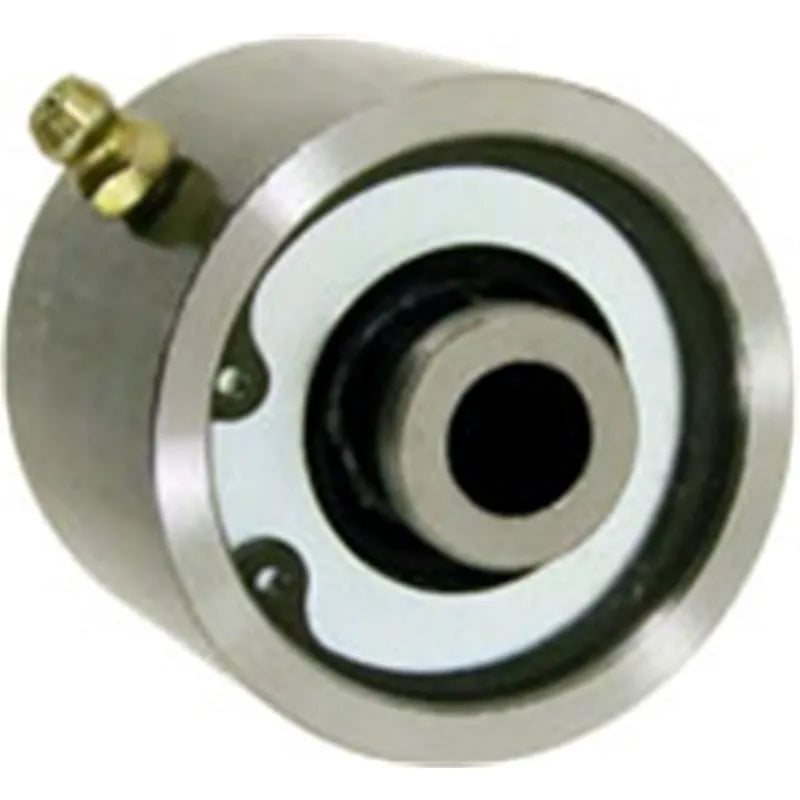

Johnny Joint Rod End 2 Inch Weld-On 2 Inch X 0.4375 Inch Ball Externally Greased Each RockJock 4x4

$61.00

SKU: R01U CE-9112P

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping over $100
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Easy — 1–2 hours

Description

Part #: CE-9112P

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.The outer shell is weldable .180 Inch wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint is a 2 Inch o.d. and features a 2 Inch mounting width and a .4375 Inch thru bolt hole.Details: Johnny Joint Rod End2 InchWeld-On2 Inch X 0.4375 Inch BallExternally GreasedEach

Johnny Joint (R) Rod End | 2 in. | 2 in. Mounting Width | Externally Greased | w/o Bolt | 0.4375 in. Thru Bolt Hole | Each

MIA's Description

The Rock Jock Johnny Joint rod end is a weld-in, 3-piece unit designed for enhanced suspension movement. It features a 0.500 in. bore size, polyurethane rod end style, and a 30-degree misalignment angle. This rod end includes a grease fitting for lubrication and is heat-treated for durability.

Constructed with a .180 in. wall machined DOM outer shell, this rod end is externally greaseable. It boasts a 2-inch overall width and a 0.515 in. ball diameter, offering significant articulation compared to standard Heim joints. Each unit is sold individually.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandRock Jock
Part NumberR01U CE-9112P

Videos

John Currie Talks about RockJock Control Arms, Track Bars, Johnny Joints and Suspension Alignment

John Currie Talks about RockJock Control Arms, Track Bars, Johnny Joints and Suspension Alignment
