Johnny Joint Rod End 2 Inch Weld-On 2 Inch X 0.500 Inch Ball Internally Greased Includes Greasable Bolt Each RockJock 4x4
SKU: R01U CE-9112-12
Moderate — 2–4 hours
Description
Part #: CE-9112-12

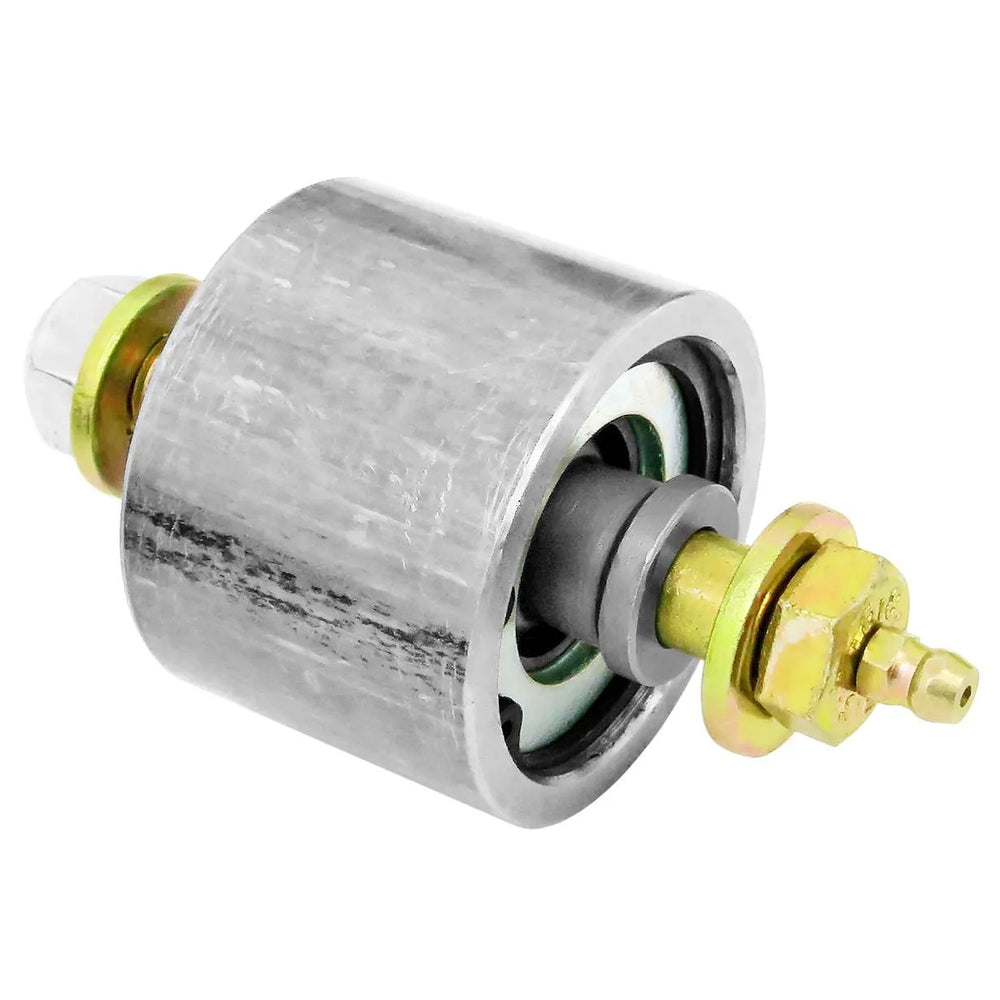

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.The outer shell is weldable .180 Inch wall machined DOM tubing. This specific joint is a 2 Inch o.d. and features a 2 Inch mounting width and a .500 Inch thru bolt hole. Grade 8 greasable bolt with nut and washers included.Details: Johnny Joint Rod End2 InchWeld-On2 Inch X 0.500 Inch BallInternally GreasedIncludes Greasable BoltEach
Johnny Joint (R) Rod End | 2 in. | w/0.5 in. Greasable Bolt
MIA's Description
The heat-treated center balls are cross-drilled for lubrication, and the internals are secured by heavy-duty side washers and a snap ring. The outer shell is constructed from weldable .180-inch wall machined DOM tubing. This joint features a 2-inch outer diameter, a 2-inch mounting width, and a .500-inch thru-bolt hole, and includes a Grade 8 greasable bolt with nut and washers.
Fitment
Fitment Guaranteed
Don’t gamble
on fit.
Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.
Available on iOS & Android
Specifications
| Brand | Rock Jock |
| Part Number | R01U CE-9112-12 |
