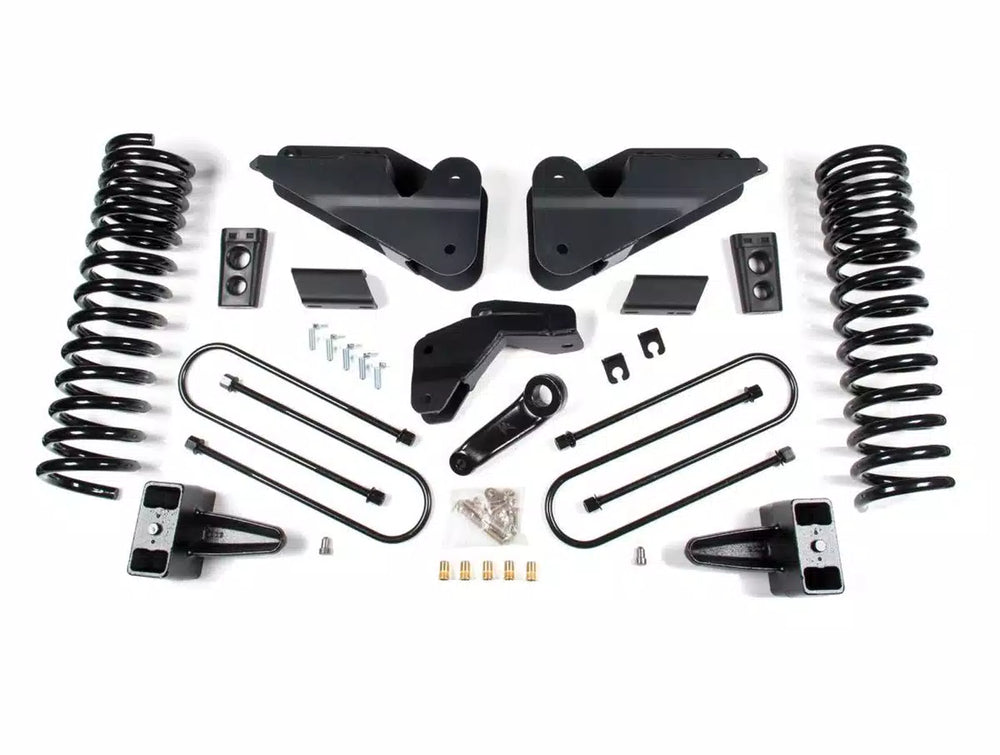

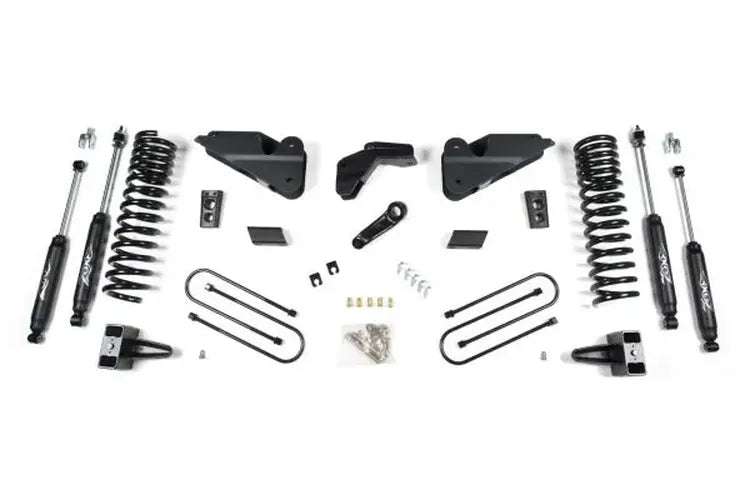

(KIT) 13C RAM 3500 6.5IN LIFT SYSTEM DSL

The Zone Offroad D52 is a 6.5" suspension lift system designed for heavy-duty applications. It utilizes heavy-duty radius arm drop brackets to properly accommodate massive 6.5" progressive rate coil springs. The kit includes a drop pitman arm, extended bump stops, a track bar relocation bracket, sway bar drops, and brake line relocation to adjust critical components and angles. The system offers a choice of standard hydraulic or Nitro shocks for a great handling, smooth ride. The rear of the truck is lifted via a 5" block and U-bolts to achieve a level stance.

This system features heavy-duty drop brackets to maintain correct suspension geometry and progressive rate coil springs for improved ride quality and off-road performance. It allows for increased tire clearance, accommodating up to 37x13.50 tires with appropriate wheel spacing.

Installation has a difficulty level of 3 out of 5. Important considerations include potential front driveline vibration at speeds over 35 mph in 4WD; an optional t-case indexing kit (D5623 for 6-bolt, D5813 for 8-bolt transfer cases) is recommended if this occurs. Vehicles with a two-piece drive shaft and carrier bearing require the optional bearing drop kit D5405. This kit is not designed for dually models or models with factory rear airbag suspension.

This lift kit provides a comprehensive solution for lifting your 2013-2017 Ram 3500 4WD Diesel truck, enhancing its stance and off-road capability while maintaining proper suspension geometry. It is backed by a limited lifetime warranty.
