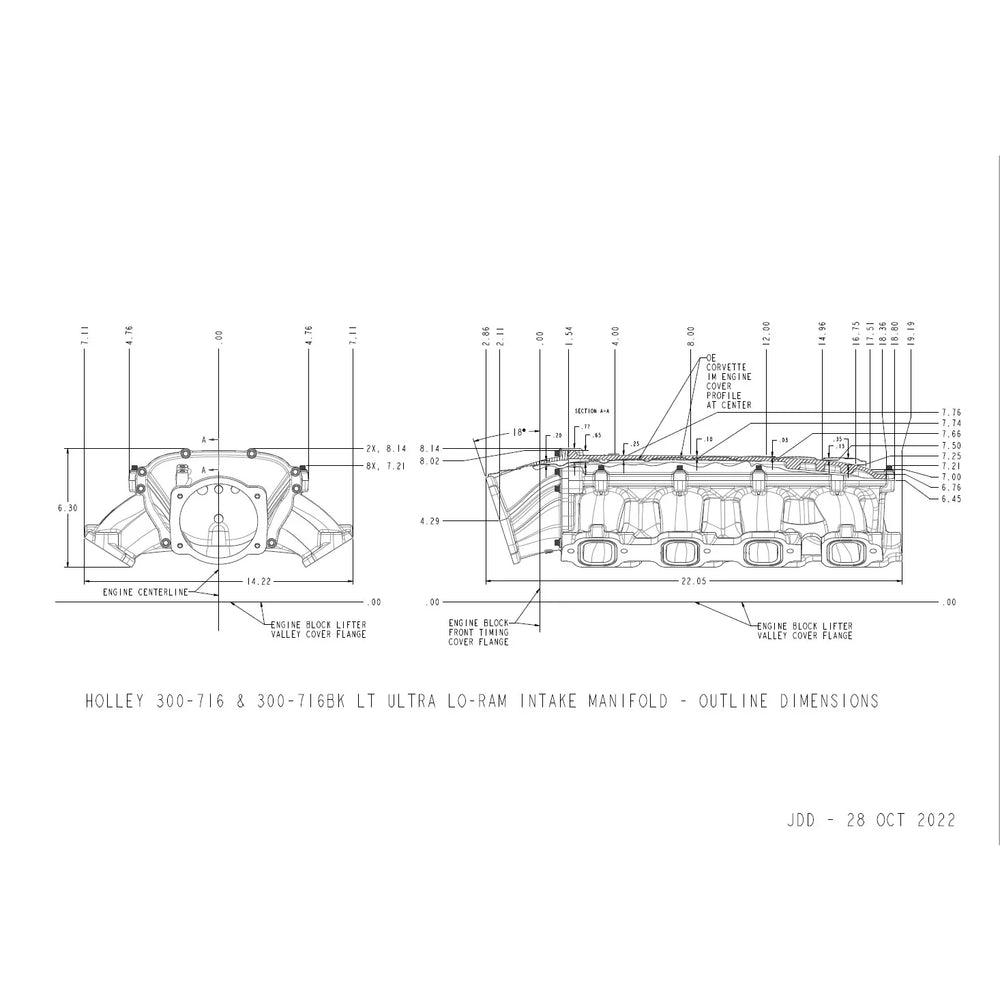

KIT, INT. MANIFOLD, LT LO-RAM, BLACK

Part #: 300-716BK

The Holley GM Gen V LT Ultra Lo-Ram intake manifold kits are designed for GM Gen V LT engines equipped with GM LT cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Ultra Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7,000-8,000 rpm depending on the application.

Features:

• Designed for GM Gen V engines equipped with GM LT type cylinder heads
• 105mm diameter throttle body opening accepts OEM 4-bolt LS/LT DBW or Holley LS/LT throttle bodies
• Engineered for forced induction (supercharged or turbocharged) engine applications with peak power at 7,000-8,000 rpm depending on the application
• Only 0.97-inch taller than a factory LT1 manifold provides maximum clearance under a stock or mildly modified hood
• Modular design & front entry plenum flange allows design & fabrication of special throttle body adapters or inlet ducts for custom installations. Base manifold, plenum top, throttle body adapter available as separate kits
• Clears C7 Corvette cowls and hoods without modification
• Available for OE direct fuel injection only or with added port fuel injection provisions
• Kits with port injection provide high volume fuel rails with 3/4-16 O-ring ports (8 AN). Mounting hardware is included
• Ultra Lo-Ram kits with a burst panel flange are available, Ultra Lo-Ram billet burst panel duct is offered separately (PN: 300-608 clear anodized, PN: 300-608BK black anodized)
• As-cast aluminum (Satin) and black powder coat finishes available

Front-Feed - OE Direct Injection Only - Black Finish
