KURO Turbo GTX3076R Gen2 Ball Bearing Turbocharger

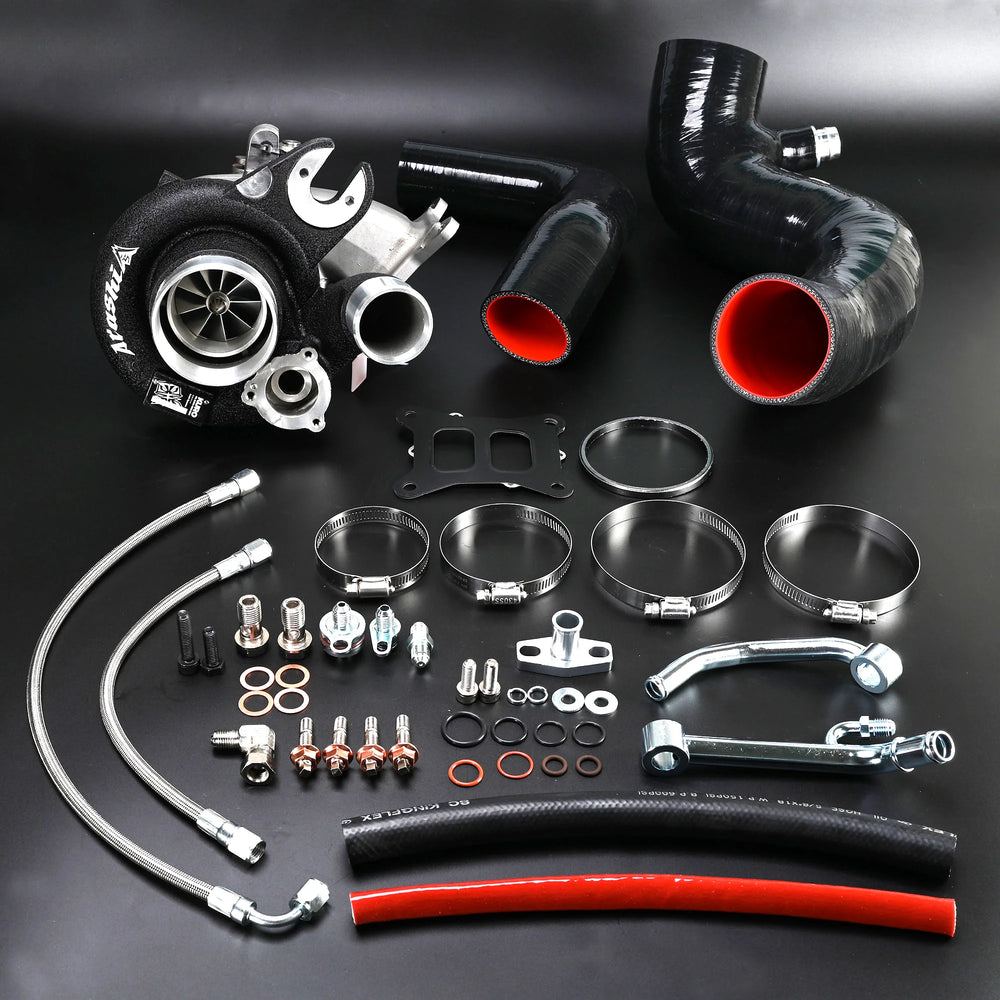

The Arashi Dynamics KURO Turbo GTX3076R Gen2 offers a significant upgrade for IS38 turbo applications. This high-flow turbocharger is designed as a direct replacement and performance enhancement for the IHI IS20 turbo found on models like the Golf GTI and Audi S3. It features a robust Arashi Ceramic Ball Bearing system for quicker spool response and extended operational life. Key specifications include a 58mm x 76mm compressor wheel with 9 billet blades and a 55mm x 60mm turbine wheel constructed from high-temperature Inconel with 10 performance blades. The compressor housing is designed to accommodate a high-flow inlet pipe, and the turbine housing is a 9cm² unit made from SCH22 material. This turbo is water-cooled and retains the stock location flange for easier integration. This upgrade turbocharger comes complete with a charge pipe kit, gasket kit, and line kit to facilitate installation. The CHRAs are brand new and precision balanced by Turbo Technics using a VSR Core-Balancing Machine, with a balance sheet included. It is specifically designed for applications such as the Audi S3 8V, TT MK3, Skoda Octavia, and VW Golf R MK7, replacing the stock 06K145702T, 06K145702R, or 06K145702Q turbos.
