Suspension and Components› Springs and Components

Dorman

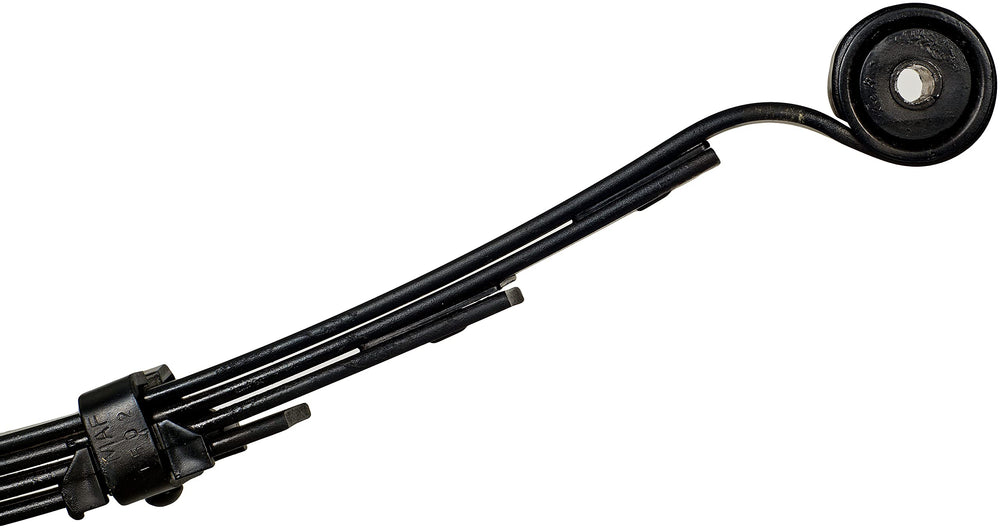

LEAF SPRING

$324.84

SKU: D00I 22-1485

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Moderate — 2–4 hours

Description

OEM Replacement GM Hummer H3 Rear Leaf Spring — Direct Fit. Original GM #: 15278386. Spring Configuration: 4/1 Rear Spring (5 Leaves). Width: 2-1/2 inches. Length (Short End): 23-3/4 inches. Length (Long End): 28-3/4 inches. Leaf Grading: 3 Leaves @ .291, 1 Leaf @ .276, 1 Leaf @ .447. Pack Thickness: 1-15/16 inches. Arch: 8-1/8 inches. Capacity: 1,600 lbs per rear leaf spring. Bushings: Front and rear pressed-in leaf spring eye bushings included. Applications: Uses 14mm x 120mm Grade 10.9 leaf spring eye bolts front and rear. Replacement Type: OEM GM rear leaf spring — direct fit.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandDorman
Part NumberD00I 22-1485

Videos

HUMMER H3 Suspension Conversion on A Chevy Colorado

HUMMER H3 Suspension Conversion on A Chevy Colorado
