LS Adjustable Conversion Mounts

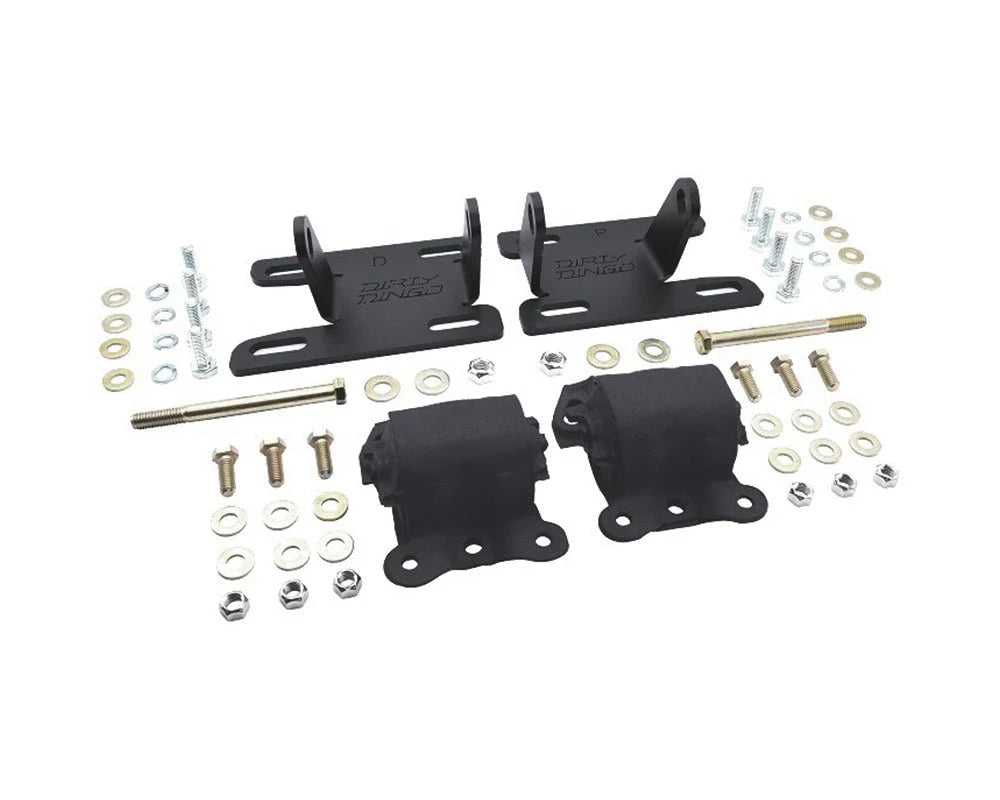

The Dirty Dingo 4WD LS S10 Adjustable Conversion Mounts are engineered to facilitate the installation of 1997-2013 Gen III/IV LS series engines into 1982-2004 4WD Chevrolet & GMC S10 trucks and mini blazers. Precision CNC laser cut from .250 thick 1050 High Carbon cold rolled steel, these patented mounts feature a design that allows for 1 1/2 inches of adjustment to ensure correct engine placement within the engine compartment. The mounts are precision CNC press brake folded with a large radius die to minimize stress on the bends. This complete kit includes the clamshell frame mounts and all necessary hardware, such as grade-8 zinc-coated bolts for mounting the clamshell engine mount to the frame and new cross bolts. Available finishes include raw steel (unpainted) and a black texture powder coat for the engine side of the mounts, while the clamshell mounts are painted black. These mounts are sold in pairs, designated as left (Driver's side) and right (Passenger's side). It is important to note specific fitment details and exclusions. These mounts will not fit ZR2 chassis trucks. However, they are compatible with Syclone and Typhoon models. Low mount alternators may interfere with the S10 steering box. The mounts are designed to work with the Milodon #31083 S10 4X4 oil pan, and additional compatible Milodon parts include the #18291 Oil Pickup Tube, #21575 LS & Gen III Oil filter relocation kit, and #85002 Oil Pan Bolt kit. These conversion mounts will also fit with S10 LS conversion headers.
