LS Alternator Power Steering Pump Bracket Kit

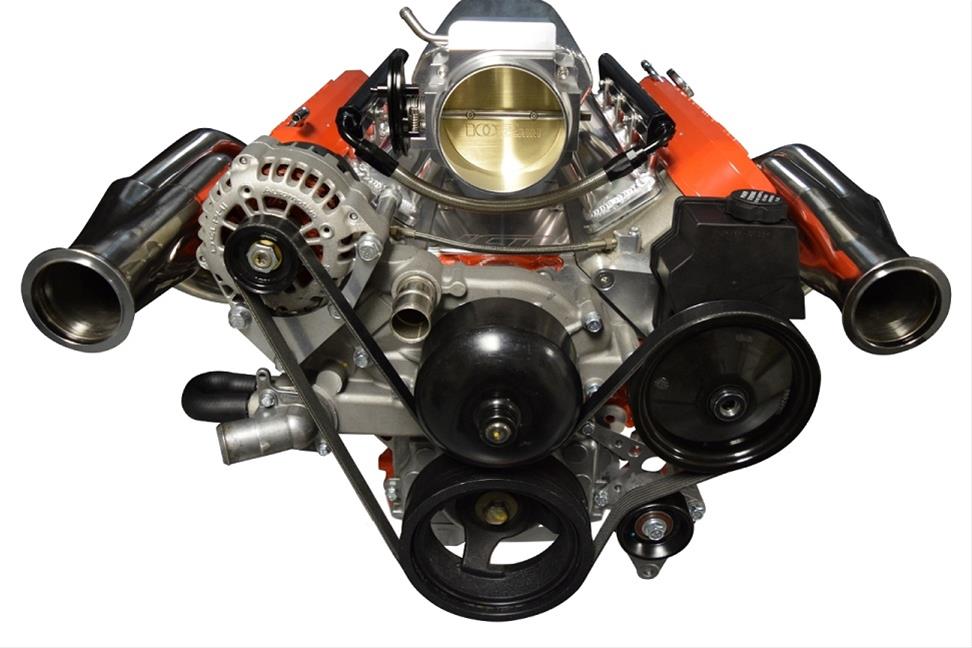

The ICT Billet 551565-3 is an alternator and power steering pump bracket kit engineered to relocate essential components for improved turbo header clearance on LS engines. Constructed from aerospace-grade billet aluminum, this kit is manufactured in the USA and includes a belt tensioner relocation with pulley, water pump spacer kit with gaskets, and all necessary mounting hardware. This kit is compatible with 1999-2013 GM Truck/SUV and 2010-2015 Camaro harmonic balancers. It requires an LS1 ('98-'02) Camaro power steering pump and pulley, and is compatible with all LS alternators except those from Corvette, CTS-V, or 2010-2015 Camaro models. The kit is designed to work with LS1 ('98-'02) Camaro water pumps (WAT200) or LS3/L99 Camaro water pumps (WAT302). Please note that this bracket kit is not compatible with any other water pump and specifically excludes 4-rib A/C brackets. For installations using a Camaro intake manifold and throttle body, a throttle body rotation adapter (551781) may be required when using an LS3 setup. If an extended alternator harness connection is needed, ICT offers adapter harnesses (WEALT30-36 for 4-pin or WEALT40-36 for 2-pin). The kit is also compatible with cast or billet turbo oil drain timing covers.
