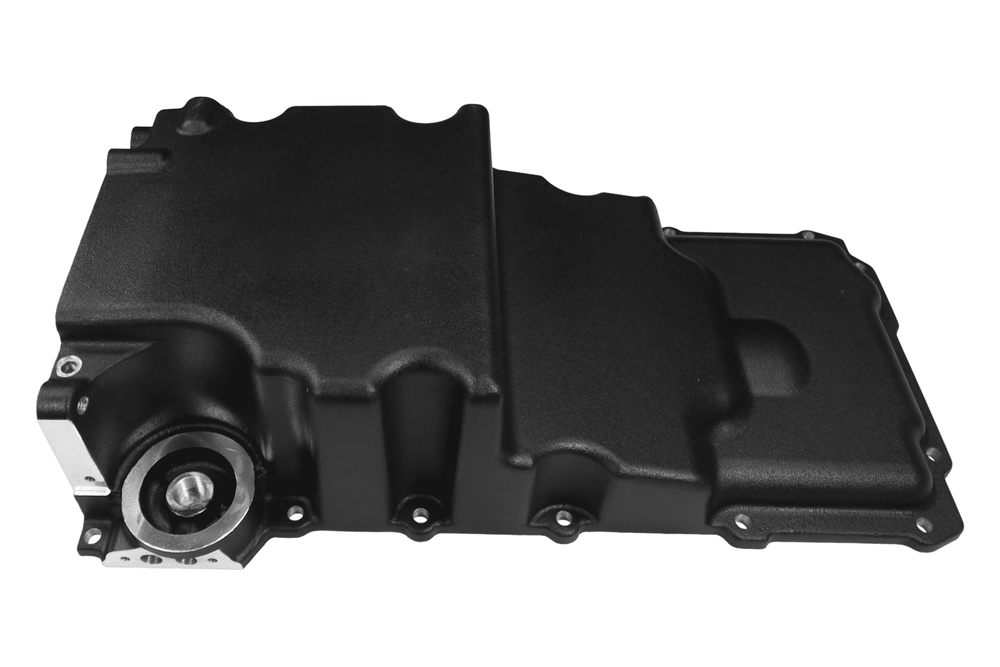

LS SWAP OIL PAN MEDIUM PROFILE 6.25 QTS W/ FILTER CAPACITY BLACK

This FiTech Plus LS Swap Oil Pan is designed for medium fitment in open-fitting chassis, providing ample clearance for stroker cranks. It offers OEM oil filter mounting, oil cooler port provision, engine NVH suppression, flange gasket and sealing, structural rigidity, and bell-housing attachments. The pan is made from high-quality cast aluminum with a clean exterior in a black finish. The complete kit includes a sump baffle, pick-up tube, sump plug, oil filter stud, and oil passage cover. It works with standard off-the-shelf oil filters like AC Delco PF48/PF48E, Mobil M1-113, Wix 57060, and K&N HP-1017. It's not intended for engines that originally used a dry sump system. The pan is designed to use an OEM LS3 Dipstick and Dipstick Tube (GM 12669528 & GM 12625031) and a GM "F-body" windage tray (GM P/N 12558253) with minor modifications.
