LS3 HI-RAM, INTAKE MANIFO

Part #: 300-115BK

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost-effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications, and more!ΓÇó The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.ΓÇó Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations ΓÇó EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.ΓÇó Cast aluminum construction.ΓÇó Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Features:

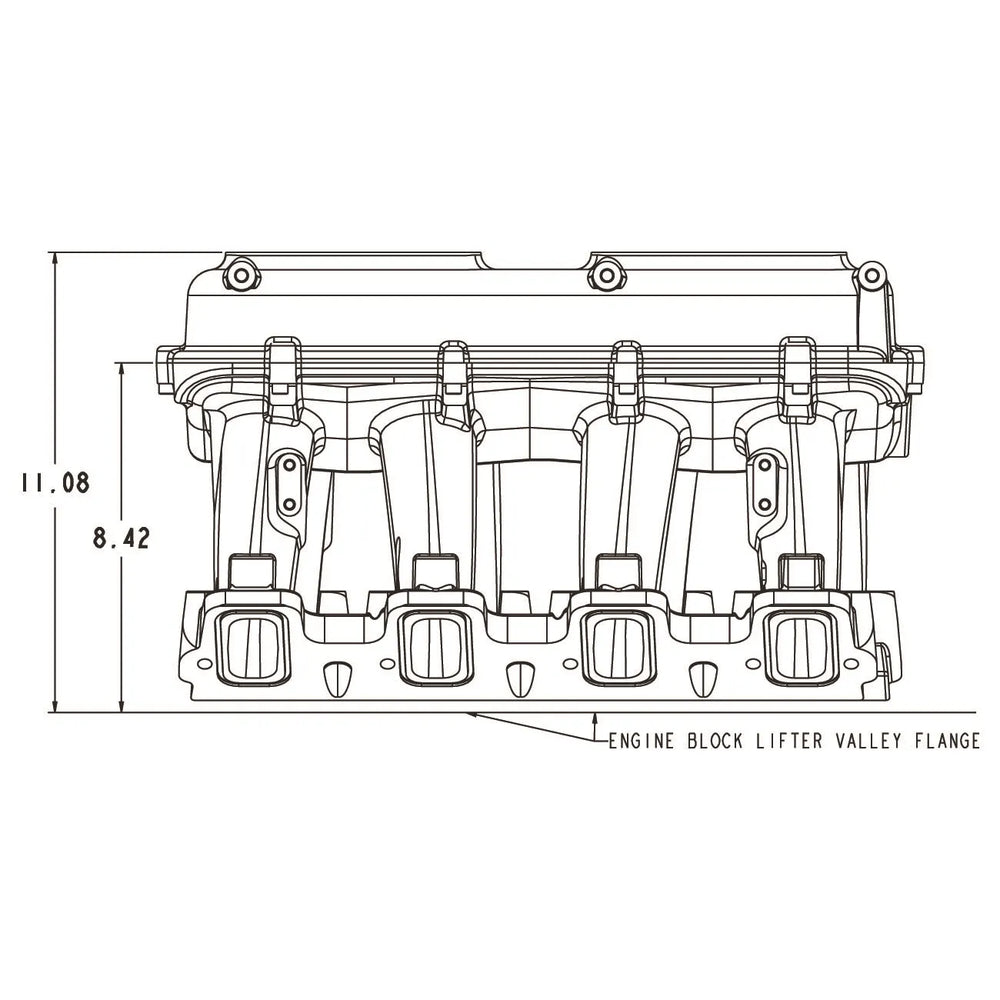

• Height (Carbureted or EFI, 2x4V Top Mount & Blank) - 11.08" to the lifter valley cover flange on engine block.
• Base Plenum Top Mounting Flange Height - 8.42" to the lifter valley cover flange on engine block.
• Port Size - 2.49" Height x 1.21" Wide
• Mounting Flange Gasket Type - Standard LS3 Molded O-Ring
• Plenum Top Gasket Type - 3/32" Round O-ring Cord
• Runner Length - 6.50", As-Cast Runner Cross-Sectional Area - Tapered 4.25 in┬▓ to 2.77 in┬▓

EFI Hi-Ram Intake, 2 x 4150 (2 x 1000cfm sideways or inline mounting) w/Black Ceramic Coating
