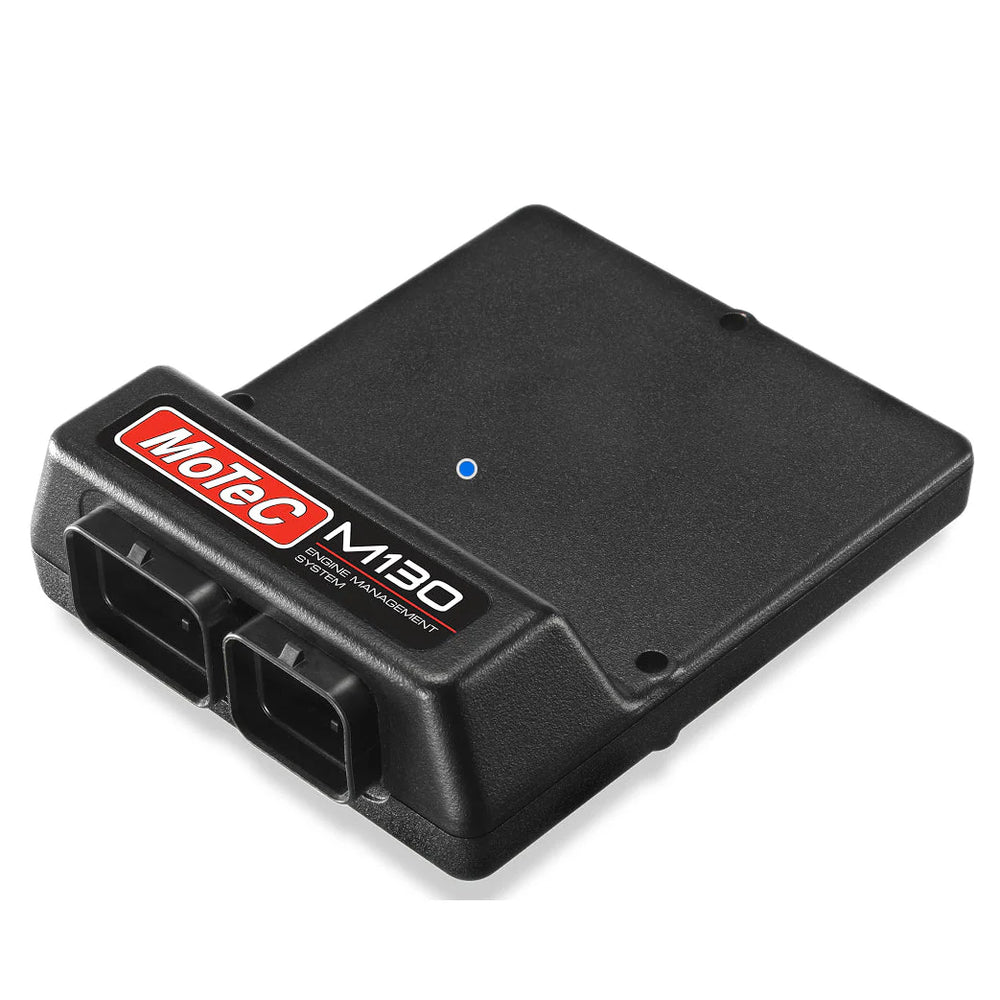

M130 ECU

The MoTeC M130 ECU begins a new era in engine control, offering advanced customization and total control without compromise. Its unique technology and highly advanced security strategies make it ideal for both category-managed and unrestricted applications.

This port injection ECU provides comprehensive control for most modern engines. It features 8 Peak & Hold injector drivers, 8 lowside ignition outputs, 6 half-bridge outputs, and 7 universal digital inputs, along with 8 analog voltage inputs and 4 analog temperature inputs. Additionally, it includes 2 knock inputs and 1 CAN bus.

The M130 is housed in a robust magnesium enclosure, measuring 107 x 127 x 39 mm and weighing 290g. It utilizes two waterproof connectors: one 34-pin and one 26-pin Tyco connector. The ECU operates within a supply voltage range of 8V to 32V and has a typical no-load supply current of 0.34A at 13.8V.
