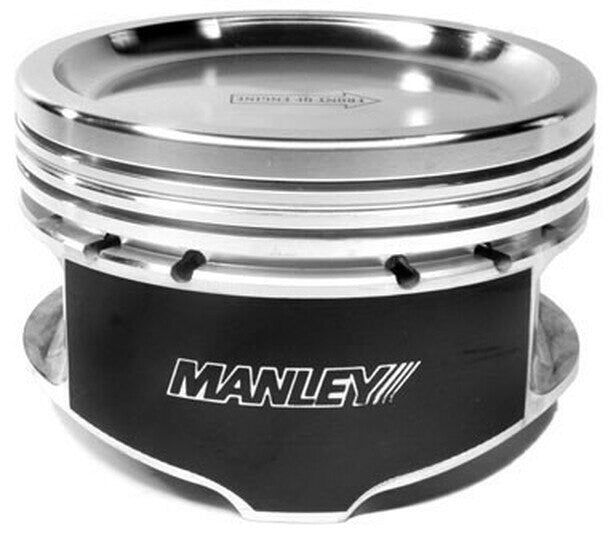

Manley Chevrolet LS Piston Set - 4.135in Bore 1.065in CH, -20.00 CC

$1,177.62

SKU: M004 596410C-8

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Moderate — 2–4 hours

Description

Manley pistons are machined from high strength 2618 material. Each design is lightweight yet robust for long service life. Perfect ring groove to skirt squareness is achieved through Manley's unique 'one fixturing' manufacturing method that assures maximum horsepower. They utilize a proven offset wrist pin design, a 1.5, 1.5, 3mm land and moly coated skirts for ultimate performance. Roundwire locks, tool steel wrist pins and pressure balance grooves are included with every set at no additional charge. Compression ratios are calculated at 0.00' deck clearance, a 9.240' deck height, and a .042' thick compressed head gasket. Piston rings are purchased separately.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandManley Performance
Part NumberM004 596410C-8
