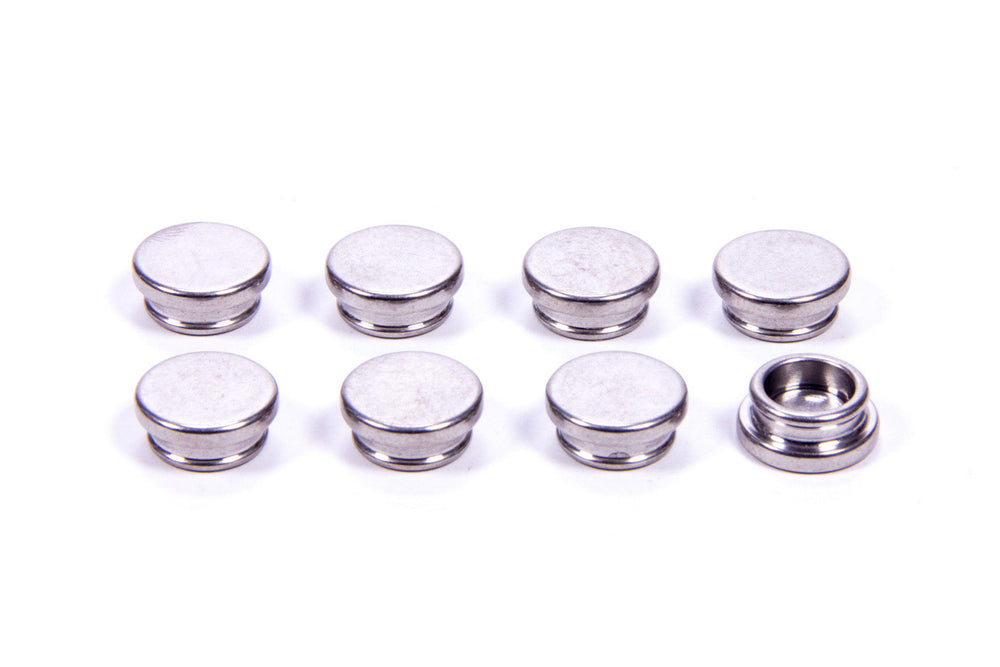

LocCap-.3415 STEM

Part #: 42404-8

The ULTIMATE valve lock/wear cap assembly designed specifically for Fuel, Alcohol, and Pro Mod Racers. First developed by our engineering team in the late 1990s for NASCAR applications, Manley s LocCap system is designed to retain the wear cap on the tip of the valve by employing an external bead on the wear cap that when the system is assembled resides within an internal retention channel located on the I.D. of the valve locks. Manley s valve train components group, headed by Manley GM Michael Tokarchik, refined the original designs combining a state-of the-art steel alloy and ultra precise manufacturing techniques to achieve the goal of delivering a no compromises valve lock/wear cap assembly for the supercharged classes. Manley s LocCap systems are available in true 7 as well as 10 and Super 7 assemblies for 3/8 , 11/32 and 5/16 stem valves in both Manley Bead Loc and conventional square groove configurations. In addition, Manley s LocCap system retrofits to competitors Lash Keeper

Features:

• • TensileMax alloy heat-treated to HRc 55 to minimize wear
  • Micro-finished rocker contact surface
  • 100% contact between underside of LocCap and valve tip
  • Maximium wall height and precise fit to stem insures minimal LocCap rocking
  • LocCap incorporates fillet radius to provide adequate clearance to corner of valve stem
  • Clearance in the system allows linear valve lock movement independent of LocCap
  • Manley's LocCap system is less sensitive to precise valve tip length than "Lash Keeper" assemblies
  • Valve lock I.D. dimensions correct for Manley valve stem size and groove configurations
  • Note: LocCap thickness above valve tip is .106?

Valve Stem Size: 11/32 inches (.3415 in.) - Weight (per pair): 4.1 grams - 8 pairs
