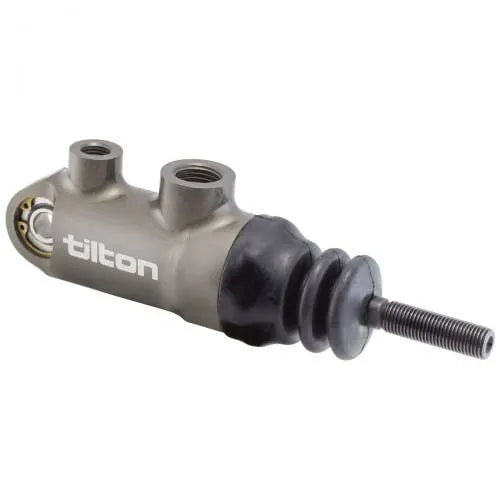

Master Cylinder 3/4in

78-Series master cylinders offer the latest in racing master cylinder technology in a very lightweight and compact design. The rear spherical bearing mount and one-piece piston/pushrod eliminate side thrust into the master cylinder bore, providing consistent and repeatable braking. It features a billet aluminum body with proprietary low-friction coatings, hand-built and blueprinted for cut-off port travel, an external dust boot, and an O-ring seal at the main rod guide and body interface. It has 1.1” of stroke, AN3 outlet port and AN6 inlet port, and a 3/8”-24 pushrod. It fits Tilton 800-Series and 900-Series pedal assemblies. Flexible lines must be used for inlet and outlet port plumbing. Not designed for use with ABS systems.
