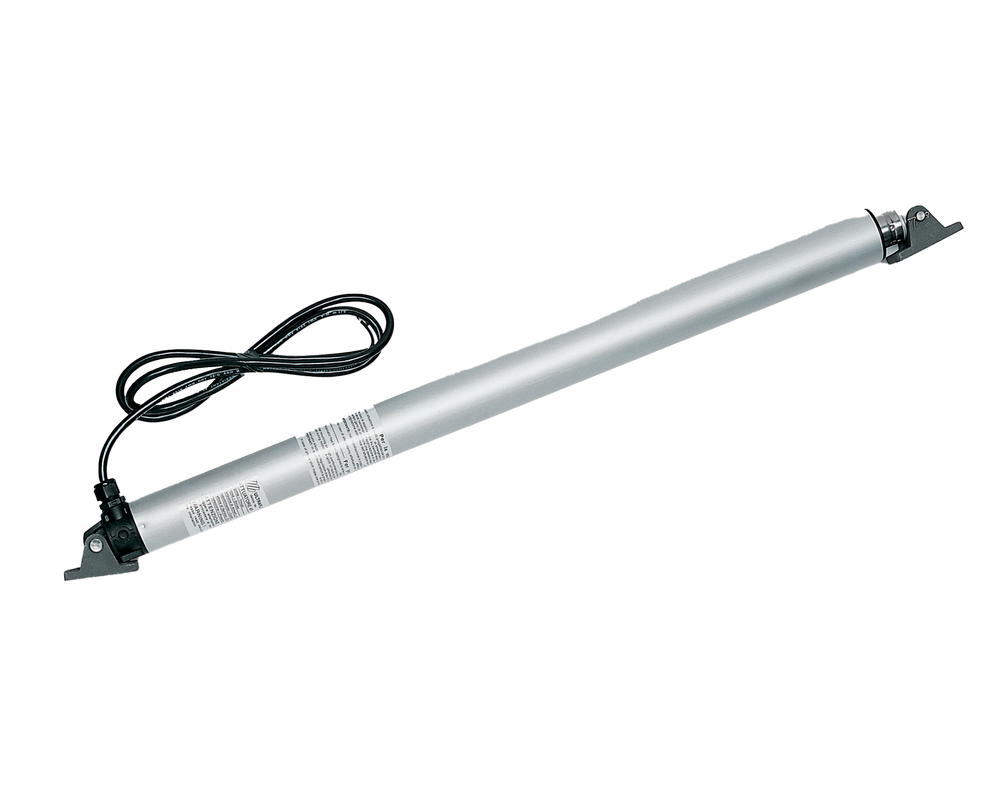

MECH. HATCH LIFTER 18' STK FAST DEU

The AV hatch lifters are electromechanical products, especially designed for marine use on pleasure boats. They allow full or partial opening and closing of heavy engine hatches, peak tanks, hatch beams etc. By activating a switch, it is possible to lift the hatch to any desired position from closed to full open; an internal self-locking mechanism will maintain the position preventing any accidental hatch closing. In case of a power failure an emergency device allows for manual opening. Maximum load for single installations: 1200N (120 kg – 265 lbs), 2400N ( 240 kg – 530 lbs ) for dual installation. 12V DC version. Supplied with all mounting hardware. Stainless steel telescopic ram for manual operation in case of emergency. Circuit breaker to stop accidental overloading of the system and electronic stop at closed or full open position. IP 65 protection rated. Speed 25mm/sec no load applied, 17mm/sec loaded.
