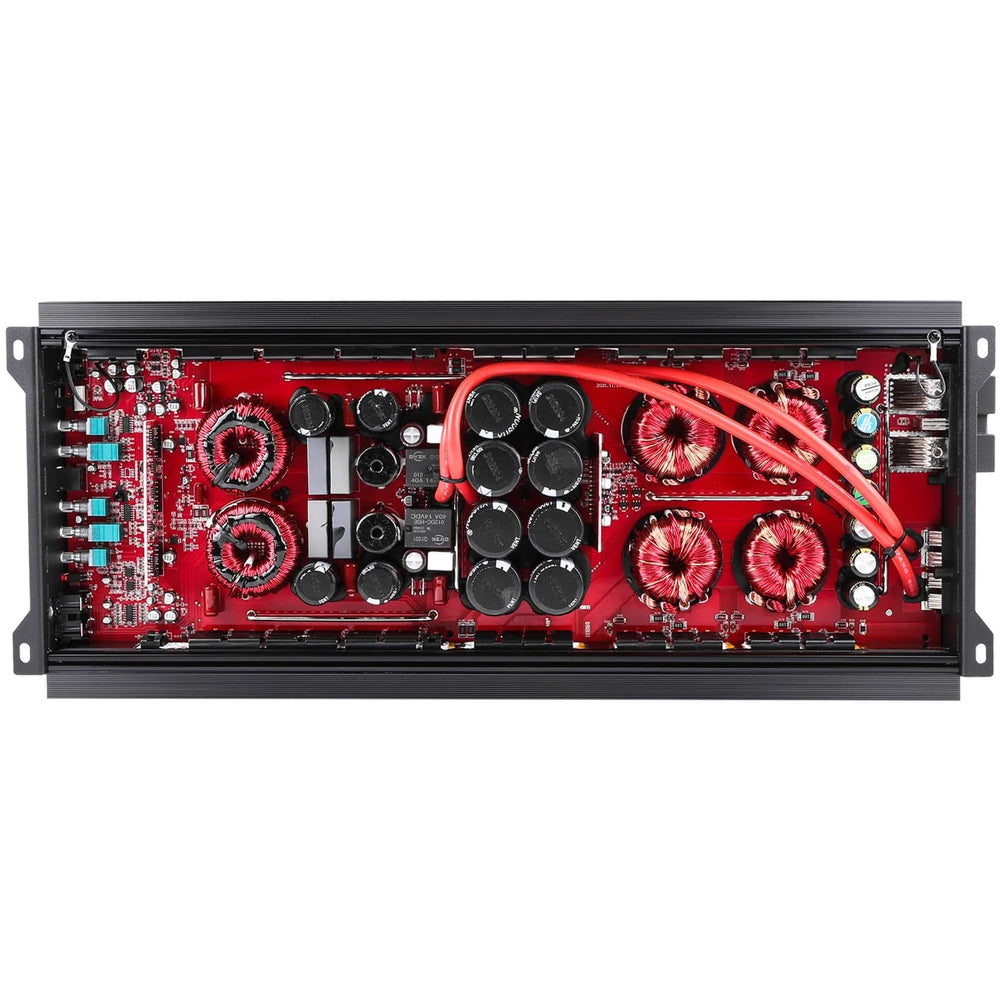

Monoblock Class D MOSFET Power Amplifier

The Skar Audio RP-3500.1D is a competition-grade, monoblock Class D MOSFET power amplifier engineered to deliver immense power and reliability. It boasts a conservative RMS power rating of 3500 Watts at 1 ohm, with a peak power output of 5,400 Watts at the same impedance. This amplifier is stable at 1 ohm, ensuring consistent performance under demanding conditions. Key features include a frequency response of 20Hz - 250Hz, an on-board bass boost control with a 0-9dB range, and a 4-way protection circuitry to safeguard the unit. For maximum current flow, it is equipped with 1/0 AWG power and ground input terminals. A remote subwoofer level control knob is also included, allowing for convenient adjustments. This amplifier operates within a working voltage range of 8.5v to 14.4v and features a fuse rating of 80 Amp. Its dimensions are 18.9 x 8.27 x 2.45 inches, with a surface mount design.
