MORIMOTO 2BANGER DITCH LIGHT KIT: 1

The Morimoto 2Banger A-Pillar LED system provides a solution for enhanced off-road lighting. It is designed for versatile use, offering various beam patterns for different driving conditions, from long-range spot-lights for high-speed driving to ditch lights for illuminating the side of the road. The kit includes high-performance 2Banger LED pods, application-specific brackets for easy installation, and a switched wire harness for proper power delivery.

The A-pillar kit for the 2014-2021 Toyota Tundra has undergone extensive design, prototyping, and testing to ensure perfect compatibility and a modification-free installation using pre-existing mounting points. The brackets are laser-cut from 304 stainless steel and powder-coated for durability.

Key features and beam patterns:
* **HXB Spot Beam:** Utilizes Osram LEDs and advanced optics for long-range illumination (up to 700 meters).
* **HXB Combo Beam:** Offers a blend of width and distance illumination for comfortable medium-range driving.
* **HXB Wide Beam:** Designed to illuminate the area directly in front of the vehicle, with dual-axis control for width and hotspot. It meets SAE F regulation for legal fog light use on public roads.
* **HXB Flood Beam:** Provides broad ambient light for low-speed driving, rock crawling, backup lights, or illuminating campgrounds.
* **NCS Spot Beam:** Features a focused 5-degree hotspot surrounded by a 14H x 4C degree flood beam for long-range visibility.
* **NCS Combo Beam:** Blends width and distance for clear medium-range path illumination.
* **NCS Wide Beam:** Produces a wide beam for improved visibility to the sides of the road, designed to complement high-performance headlights and meet SAE standards for fog light use when properly aimed.

The product offers both white and yellow output versions. The yellow output uses phosphor-converted Yellow LEDs for optimal performance in rain, snow, or fog. Reliability is ensured through features like a copper DTP PCB for maximized heat transfer, a cast aluminum shell that is electroplated and powder-coated, and an IP69K-rated gasket system, DT power connection, and breather valves for weather resistance.

**Street Legality:** When aimed properly, the Spot and Combo beam patterns comply with SAE J581 standards for an auxiliary high beam. The 2Banger wide beam model is verified-compliant with the latest SAE-F regulation for on-road use by Calcoast Labs.

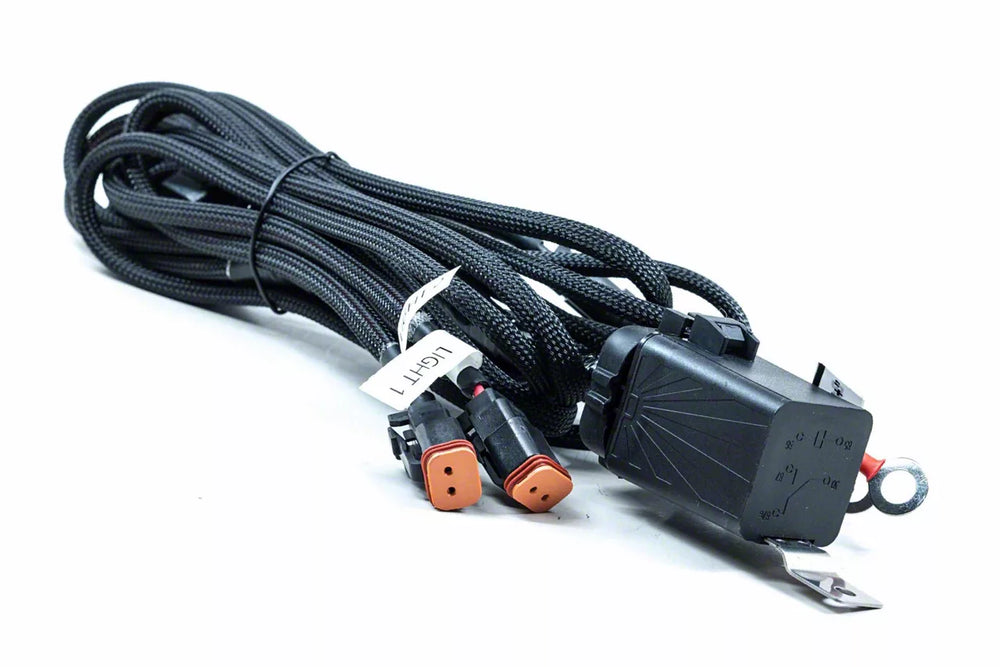

**Wiring Harness:** The included wiring harness is designed with high-quality components, including a triple-sealed proprietary 4-pin relay, over-molded inline fuse holder with a 20A mini fuse, DT06-2S female outputs with dual seals, stainless steel power and ground terminals, and a proprietary M-Spec push-button switch with a yellow-LED backlight.
