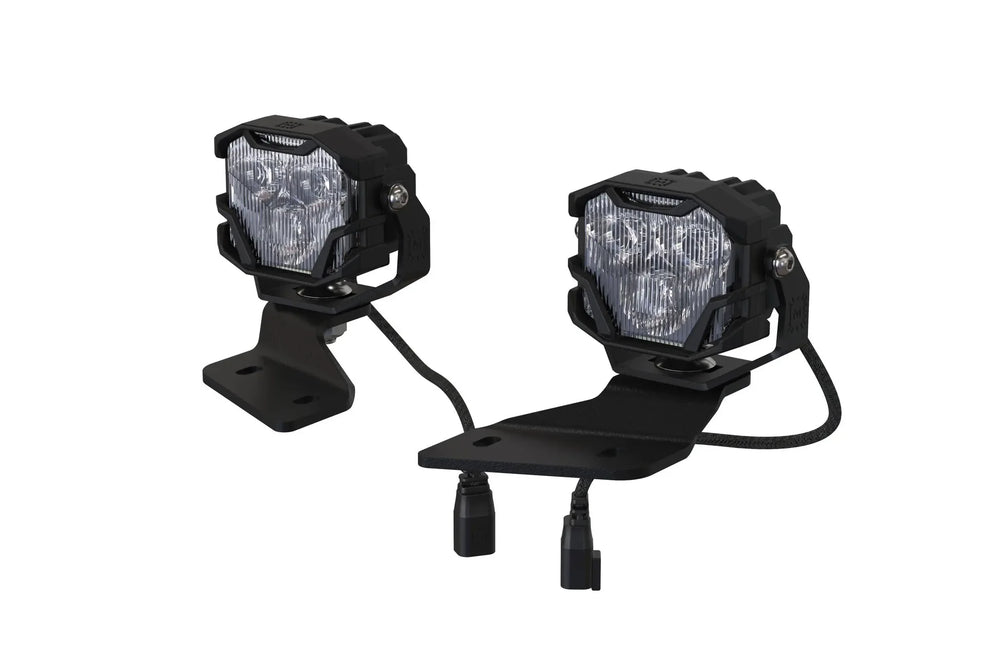

MORIMOTO 4BANGER DITCH LIGHT KIT: 2

The Morimoto 4Banger A-Pillar LED system provides additional lighting that can be aimed as desired. It offers versatility for various lighting needs, from long-range spotlights to ditch lights. The kit includes high-performance 4Banger LED pods with a NCS Yellow Wide Beam pattern, brackets for easy installation, and a switched wire harness.

The A-Pillar kit for the 2021+ Ford Bronco is engineered for perfect compatibility and a modification-free installation using pre-existing mounting points. The brackets are made from laser-cut 304 stainless steel, electroplated, and powder-coated for durability. The yellow output version is designed for optimal visibility in rain, snow, or fog, using Phosphor-Converted Yellow LEDs for effective light penetration without compromising output.

The 4Banger LED pods feature a copper DTP (direct thermal path) PCB for maximum heat transfer, and an optimized radiator. The cast aluminum shell is electroplated and powder-coated to prevent flaking. The internals are potted, input wiring is over-molded, and the main gasket meets IP69K standards for full weather resistance. Cable routing clips are integrated into the bracket design for a clean installation with the Morimoto switched relay wire harness.

The patent-pending 4Banger LED pod light utilizes modern, lumen-dense LEDs from Nichia and Osram, with optics produced to world-class standards. The NCS Wide Beam illuminates the ground directly in front of the vehicle and provides a wide beam to improve visibility off to the sides of the road. It also features superior vertical gradient control to eliminate glare for oncoming traffic and, when properly aimed, meets SAE standards for on-road use as a fog light.

The optional wire harness includes a triple-sealed proprietary 4-pin relay, an over-molded inline fuse holder with a 20A mini fuse, DT06-2S female outputs with dual seals, stainless steel power and ground terminals, and a proprietary M-Spec push-button switch with an amber-LED backlight. The A-Pillar brackets are compatible with LED pods from other brands as well.
