Suspension and Components Shocks, Struts, Coil-Overs and Components

Moton

Moton 05-08 Porsche Cayman 987 2.7 Moton 3-Way Series Coilovers

$10,890.00 $9,801.00 Save $1,089.00

SKU: M03E M 500 138S

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping over $100
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Advanced — 4+ hours

Description

Part #: M 500 138S

The MOTON 3-way suspension is designed for the dedicated motorsport racers who prioritize optimizing their car's performance to the highest level. MOTON 3-WAY SUSPENSION is primarily engineered in a race set-up for motorsport, exceptionally well-suited for endurance racing. MOTON has an elevated top guide with a helper piston to reduce friction, resulting in reduced internal wear within this suspension. Ensuring stable and consistent damping performance. Challenge your vehicle by adjusting the rebound and the low- and highspeed compression adjustment separately with a remote reservoir. Each adjustment position provides distinct feedback, delivering a unique driving sensation. The inverted strut design is engineered to handle heavy side loads and braking forces. Both the front and rear dampers in this kit feature a MONOTUBE coilover design. You have the flexibility to adjust spring rates on these dampers. With this suspension you have the capability to fine-tune and customize three critical aspects of your vehicle's suspension. You can adjust the rebound, means you can control the return to extension of your dampers. With 15 distinct positions to choose from, each adjustment delivers distinct feedback and a unique driving experience. Besides that you can adjust the compression adjustment of this suspension. It allows you to control how quickly the suspension compresses (moves inwards) when the vehicle encounters changing circumstances on the road or track. With this kit you can adjust low- and high speed compression adjustment separately. Low-speed compression refers to the suspension reacts to gentle and gradual compression forces. High-speed compression addresses rapid and forceful impacts. You can stiffen the rebound / compression settings to reduce body roll, improve responsiveness and get better traction with the road. This set of suspension also includes, where applicable, camber-adjustable front Top Mounts and solid rear Top Mounts. Springs are included.

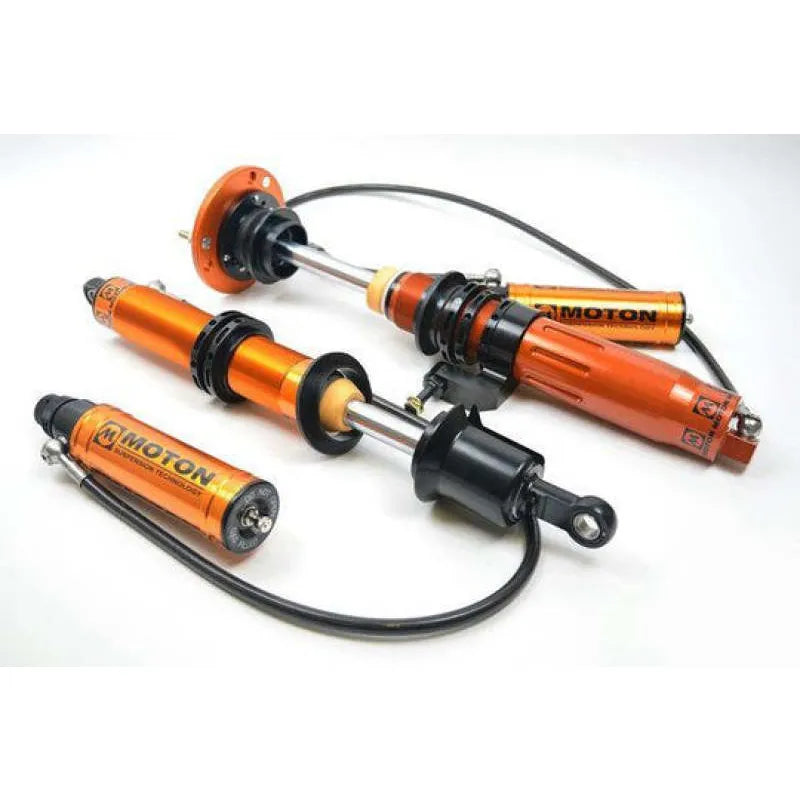

Set of MONOTUBE coilovers, 3WAY adjustable in rebound, high- and lowspeed compression and ride-height. This set includes external reservoirs and, where applicable, camber-adjustable front Top Mounts and solid rear Top Mounts.

MIA's Description

The MOTON 3-way suspension is designed for the professional racer. This ultimate suspension system is by far the finest quality and best handling suspension system on the market today. Featuring remote reservoirs for superior fluid temperature control, quick release hydraulic lines (on most models) for easy installation, separate compression and rebound damper valving adjustment and height adjustable spring perches, this kit is beyond the more common coil-over systems on the market. If your driving can benefit for the ultimate in suspension tuning, then this kit is for you. The 3-Way adjustable Moton damper features 15 positions of high speed bump, 6 positions low speed bump and 15 positions of rebound adjustment. The low speed bump adjuster is located on top of the high speed bump adjuster and can be adjusted in dependably. The low speed bump adjuster is very effective in helping to control body roll while adding to turn in and is effective in controlling pitch and squat. The 3-Way adjustable Moton damper is using, like the double adjustable damper, a unique blow off valve system in the canister to totally control curb stones and bumpy track conditions. This version keeps the main points but is shorter and more direct. - Non-inverted monotube design. - Endurance racing technology. - Rebound adjustable. - Separate high- and low speed compression adjustable on remote reservoir. - Height adjustable. - Including springs. - Rebuildable. - Pillowball camberplates front (+ rear where applicable). - Pillowball topmounts rear where applicable.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandMoton
Part NumberM03E M 500 138S
