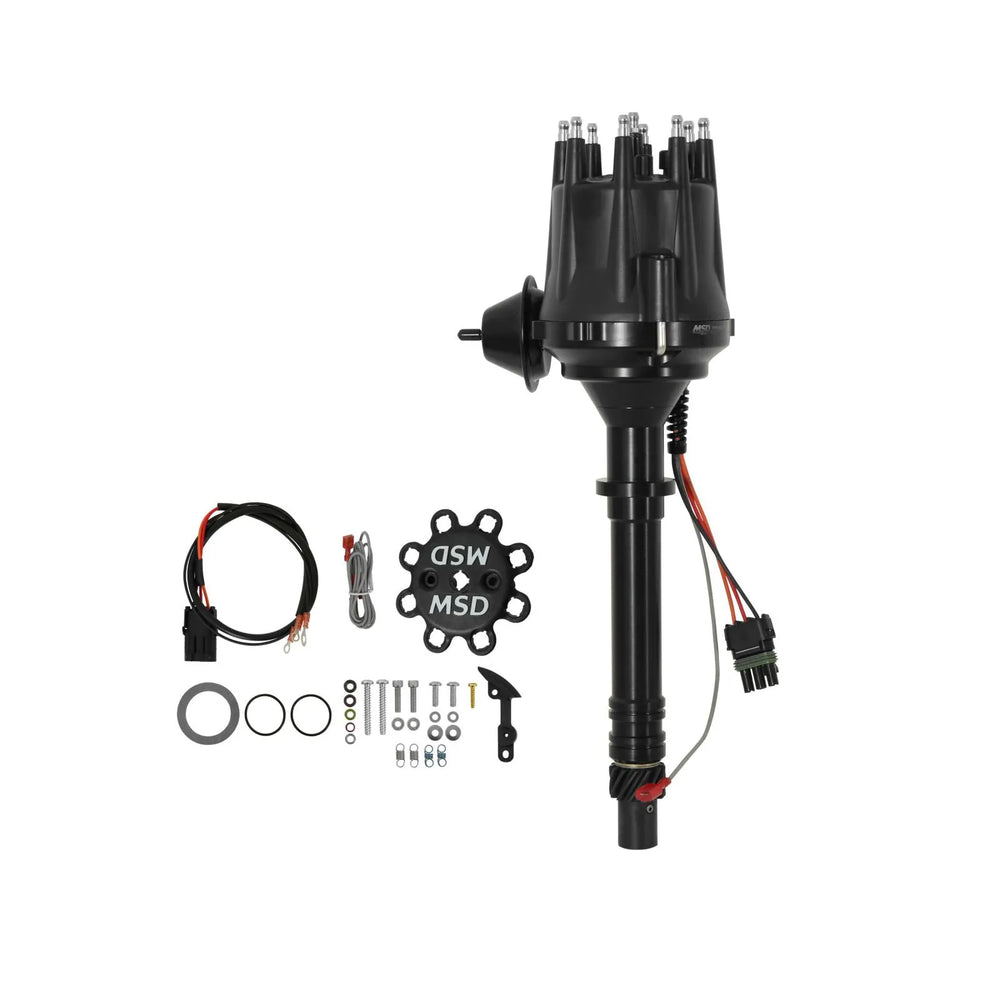

Black Chevy V8 W/Internal Module Distributor Black Ready-To-Run Distributors Include A Built-In Ignition Module-No MSD Ignition Control Required MSD Ignition

Part #: 83603

This Black Pro-Billet Ready-to-Run distributor is the perfect upgrade for outdated points distributors or bulky HEIs. Simply install the distributor in the engine, connect three wires, the coil and fire it up!A maintenance-free magnetic pick-up accurately triggers the module. The increased output of the amplifier easily outperforms stock ignitions and will smooth out the engine's idle, improve starting and provide a much higher rpm range.The Ready-to-Run features MSD's adjustable mechanical advance which allows you to custom tailor an ignition curve to match your engine's needs. There is also a vacuum advance canister to help improve economy. For positive street performance, the Ready-to-Run is the best choice.Includes a separate tach circuit that is ideal to trigger an aftermarket EFI such as an Atomic EFI system.Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeMechanical advance assembly can be locked out for crank trigger systemsAdvance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reductionCARB E.O. ApprovedNow includes build-in rev limiter!Vacuum advance canister for improved economy (can be locked out)Easy-to-adjust mechanical advance with supplied springs and stop bushingsNylon pads ensure smooth operation of the advance weightsSimple and clean installation with only three wires to connectSpecial oil tract improves lubrication to the distributor and cam gearAdvance weight pins are staked and tig welded to the plateO-ring seals can be added to modified blocks to improve oil pressure controlDoes not require an MSD Ignition ControlPowerful built-in module produces a 7.5 amp single spark through high rpmCNC machined billet aluminum housing and billet aluminum baseSupplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)Polished steel shaft is QPQ coated and guided by a sealed ball bearingDetails:Advance Type: Mechanical and VacuumCap Color: BlackDistributor Cap Included: YesDistributor Gear Included: YesDistributor Type: Ready To RunEmission Code: 1Engine: Chevy Small and Big BlockGear Material: Cast Iron Melonized QPQ CoatedHousing Color: BlackHousing Finish: AnodizedHousing Material: AluminumIgnition Box Required: NoIgnition Coil Included: NoIgnition Rotor Included: YesWarranty: Manufacturer's Limited 1 Year Warranty

Features:

• Simple and clean installation with only three wires to connect
• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
• Does not require an MSD Ignition Control
• CARB E.O. Approved
• Now includes build-in rev limiter!
• O-ring seals can be added to modified blocks to improve oil pressure control
• Special oil tract improves lubrication to the distributor and cam gear
• Nylon pads ensure smooth operation of the advance weights
• Powerful built-in module produces a 7.5 amp single spark through high rpm
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Vacuum advance canister for improved economy (can be locked out)
• CNC machined billet aluminum housing and billet aluminum base
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Polished steel shaft is QPQ coated and guided by a sealed ball bearing
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance weight pins are staked and tig welded to the plate

Black Ready-to-run distributors include a built-in ignition module-no MSD Ignition control required.
