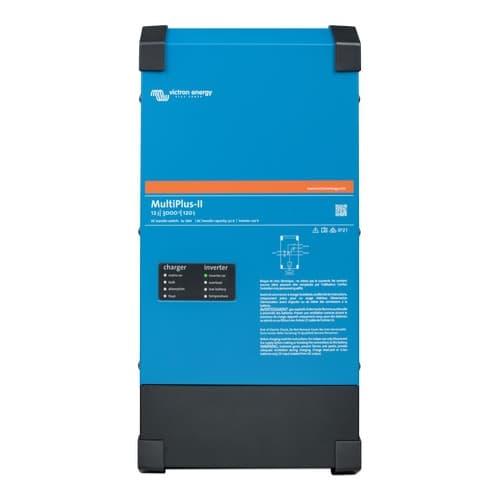

MULTIPLUS-II 12/3000/120-50 2X120V

The MultiPlus-II 2 x120V is a mobile solution for North American 50A 120/240VAC split-phase applications. It accepts and passthroughs both lines of a 120/240V supply, utilizing the full 50A for charging and AC loads. When connected to a single-phase 120V supply, the L1 input accepts incoming power, combining L1 and L2 outputs for single-phase 120V on each line. It switches to inverter operation when no AC source is available, providing a 120V single-phase output with L1 and L2 internally connected to supply 120VAC to loads on both outputs. 240VAC is only available from a split-phase 120/240VAC source to prevent discharge from heavy 240V loads. Features include PowerControl, PowerAssist, Input Current Limit, two AC outputs, and parallel/3ph configuration for VE.Bus systems. Compatible with LiFePO4 and other battery technologies.
