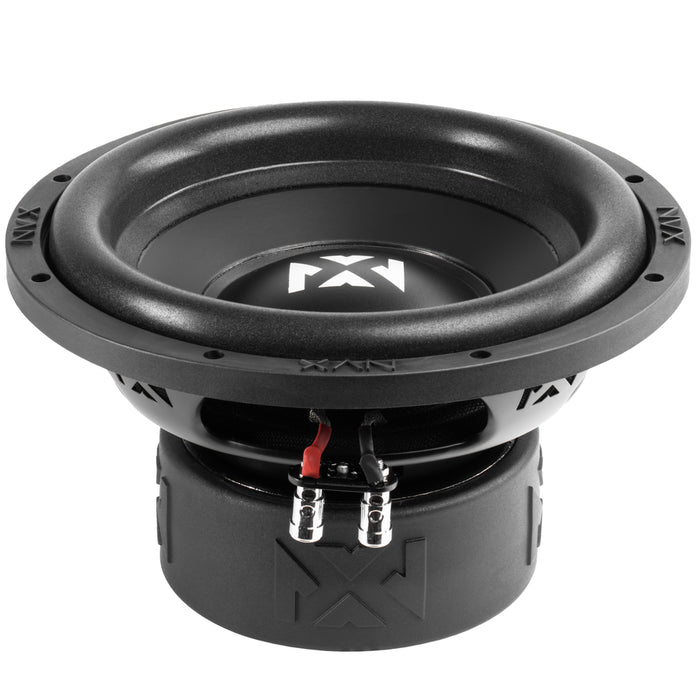

N-Series v3 10-Inch Dual 4-Ohm Subwoofer

The NVX NSW104v3 is a 10-inch Dual 4-ohm subwoofer designed to deliver powerful and precise bass. Part of the N-Series v3, it boasts a robust build with an enhanced pressed paper cone and a high-roll foam surround, contributing to its sound fidelity and longevity. The subwoofer handles 1000 watts of peak power and 500 watts RMS, featuring a 12.5 mm Xmax for significant excursion. Constructed with a stamped steel vented basket that includes an NVX punched logo, this subwoofer is built for performance. It utilizes a 2-inch high-temperature copper voice coil mounted on an aluminum former. The design also incorporates a progressive roll single-layer spider with integrated tinsel leads for reliable connection and an optimized high-velocity pole vent to manage heat. Further enhancing its performance is a double-stacked 112 oz. ferrite magnet protected by a rubber boot. The NSW104v3 has a frequency response of 20 - 200 Hz and a resonance frequency (Fs) of 36.91 Hz, with a sensitivity of 85 dB. It is recommended for a sealed box volume of 0.60 cubic feet or a ported box volume of 1.5 cubic feet. The top-mount depth is 5.36 inches, and the cutout diameter is 8.97 inches. This product is CTA-2031 compliant and comes with a 1-year warranty.
