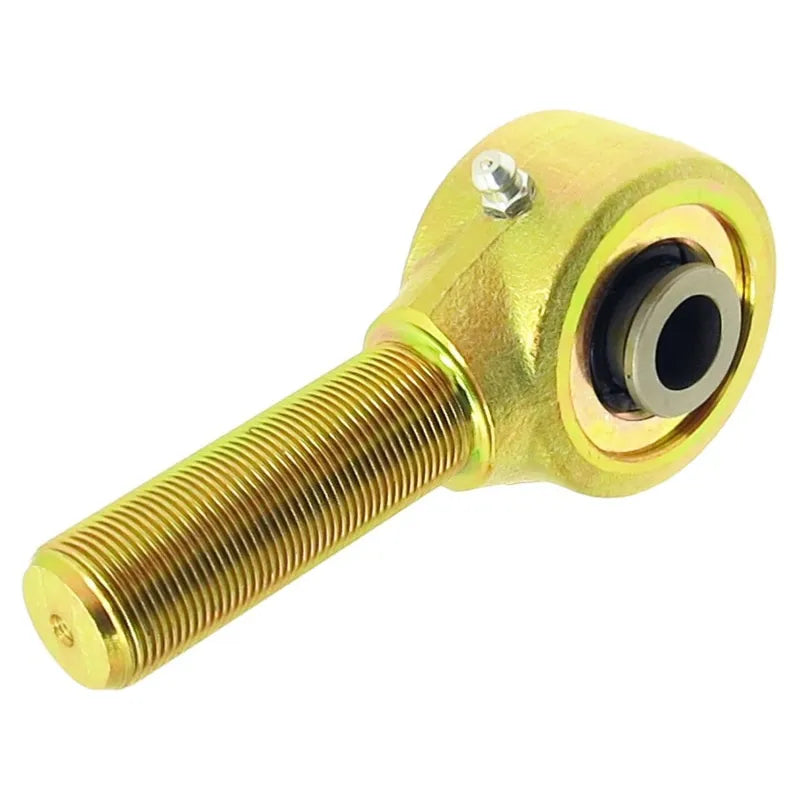

Narrow Forged Johnny Joint 2 Inch 1.640 Inch X 0.640 Inch Ball 7/8 Inch-14 Right Hand Threaded Shank Externally Greased Each RockJock 4x4

Part #: CE-9116N-23

RockJock's narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.This specific joint is a 2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 7/8 Inch-14 right hand threads on the shank, and a 1.640 Inch mounting width ball with a .640 Inch thru bolt hole. Finished in gold zinc plating.Details: Narrow Forged Johnny Joint2 Inch1.640 Inch X 0.640 Inch Ball7/8 Inch-14 Right Hand Threaded ShankExternally GreasedEach

Johnny Joint (R) Rod End | 2 in. | Narrow Forged | 1.640 in. x 0.640 in. Ball | 0.875 in.-14 RH Threaded Shank | Externally Greased | Each
