Exterior Components› Body Panels and Components
Rock Jock
Narrow Johnny Joint 2 Inch Weld-On 1.600 Inch X 0.480 Inch Ball Externally Greased Each RockJock 4x4
SKU: R01U CE-9112NP
Moderate — 2–4 hours
Description
Part #: CE-9112NP

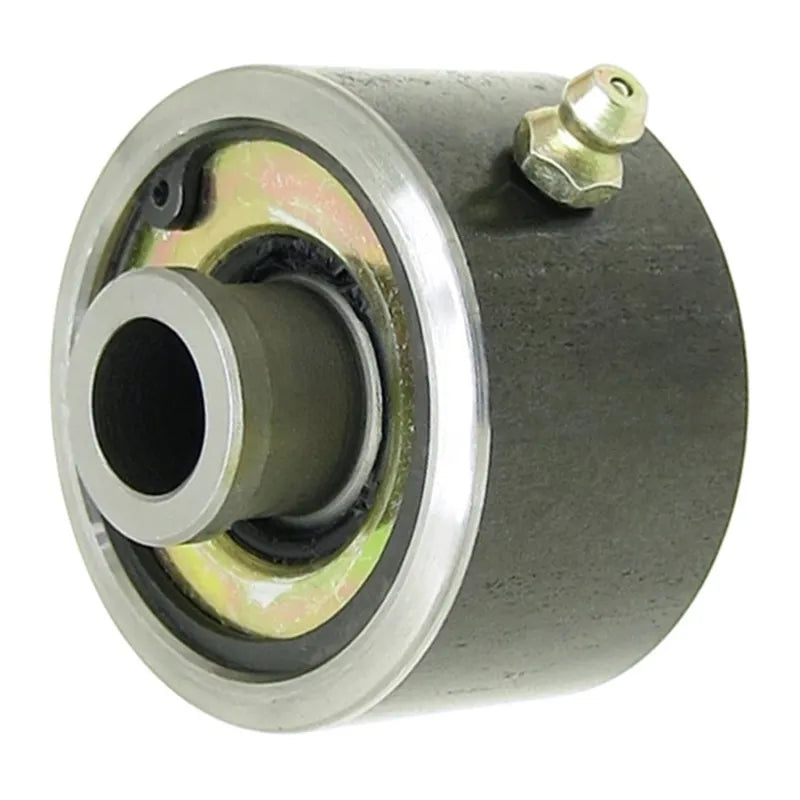

RockJock's narrow weld-on Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.The outer shell is weldable .180 Inch wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint is a 2 Inch o.d. narrow body and features a 1.600 Inch mounting width and a .480 Inch thru bolt hole. Details: Narrow Johnny Joint2 InchWeld-On1.600 Inch X 0.480 Inch BallExternally GreasedEach
Johnny Joint (R) Rod End | 2 in. | Externally Greased
MIA's Description
The Johnny Joint offers up to 40 degrees of unrestricted movement, exceeding the typical range of Heim joints. It includes high-density urethane bushings that are impervious to weather conditions. The greasable design ensures long-lasting performance and quiet operation, and the unit is fully rebuildable.
Fitment
Fitment Guaranteed
Don’t gamble
on fit.
Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.
Available on iOS & Android
Specifications
| Brand | Rock Jock |
| Part Number | R01U CE-9112NP |
