Rock Jock

Narrow Johnny Joint 2 Inch Weld-On 1.600 Inch X 0.562 Inch Ball Externally Greased Each RockJock 4x4

$61.00

SKU: R01U CE-9112NP-13

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping over $100
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Easy — 1–2 hours

Description

Part #: CE-9112NP-13

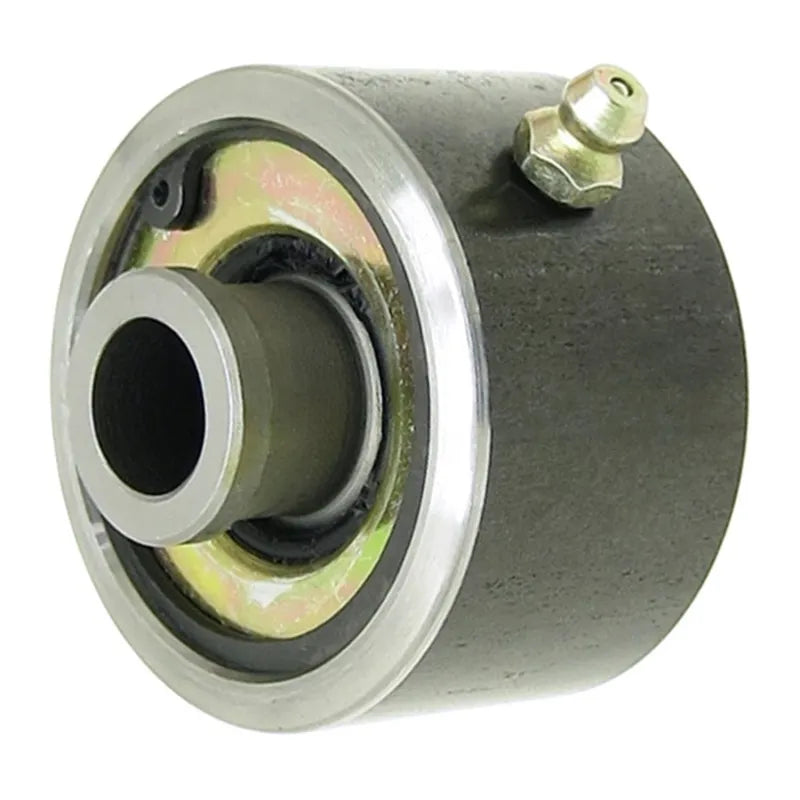

RockJock's narrow weld-on Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.The outer shell is weldable .180 Inch wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint is a 2 Inch o.d. narrow body and features a 1.600 Inch mounting width and a .562 Inch thru bolt hole.Details:Narrow Johnny Joint2 InchWeld-On1.600 Inch X 0.562 Inch BallExternally GreasedEach

Johnny Joint (R) Rod End | 2 in. | w/.562 in. X 1.600 in. Ball-Externally Greased

MIA's Description

It provides a greasable, rebuildable joint capable of dramatic articulation for off-road use while maintaining quiet performance on-road. This narrow width joint features a 4130 chromoly outer barrel and a 1.600 in. wide pivot ball with a .562 in. thru-bolt hole.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandRock Jock
Part NumberR01U CE-9112NP-13
