Exterior Components› Body Panels and Components

Rock Jock

Narrow Johnny Joint 2 Inch Weld-On 1.800 Inch X 0.630 Inch Ball Externally Greased Each RockJock 4x4

$61.00

SKU: R01U CE-9112NP-16

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping over $100
Non-Returnable Item
INSTALL DIFFICULTY
DIY PRO SHOP

Moderate — 2–4 hours

Description

Part #: CE-9112NP-16

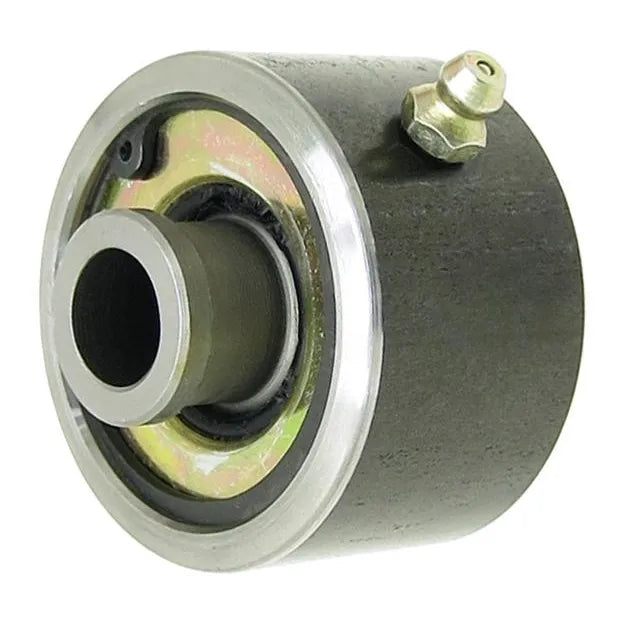

RockJock's narrow weld-on Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!Johnny Joint rod ends offer cushioning that a heim joint cannot provide via a high-density urethane bushing that encases the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.The outer shell is weldable .180 Inch wall machined DOM tubing, fitted with a zerk fitting for greasing. This specific joint is a 2 Inch o.d. narrow body and features a 1.800 Inch mounting width and a .630 Inch thru bolt hole.Details:Narrow Johnny Joint2 InchWeld-On1.800 Inch X 0.630 Inch BallExternally GreasedEach

Johnny Joint (R) Rod End | 2 in. | Narrow | Weld On | 1.800 in. x 0.630 in. Ball | Externally Greased

MIA's Description

It is constructed from 4130 chromoly and offers 25 degrees of articulation capability. The rod end features a 1.800 in. wide pivot ball with a .630 in. thru-bolt hole and a 2 in. O.D. x 1.20 in. wide outer barrel.

It is suitable for custom builders and offers a slightly firmer ride due to its 1-piece bushing. Greasing is managed externally via a 1/4 in.-28 zerk fitting. The rod end is sold as a weld-on assembly and ships disassembled.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandRock Jock
Part NumberR01U CE-9112NP-16
