Exterior Components› Body Panels and Components
Rock Jock

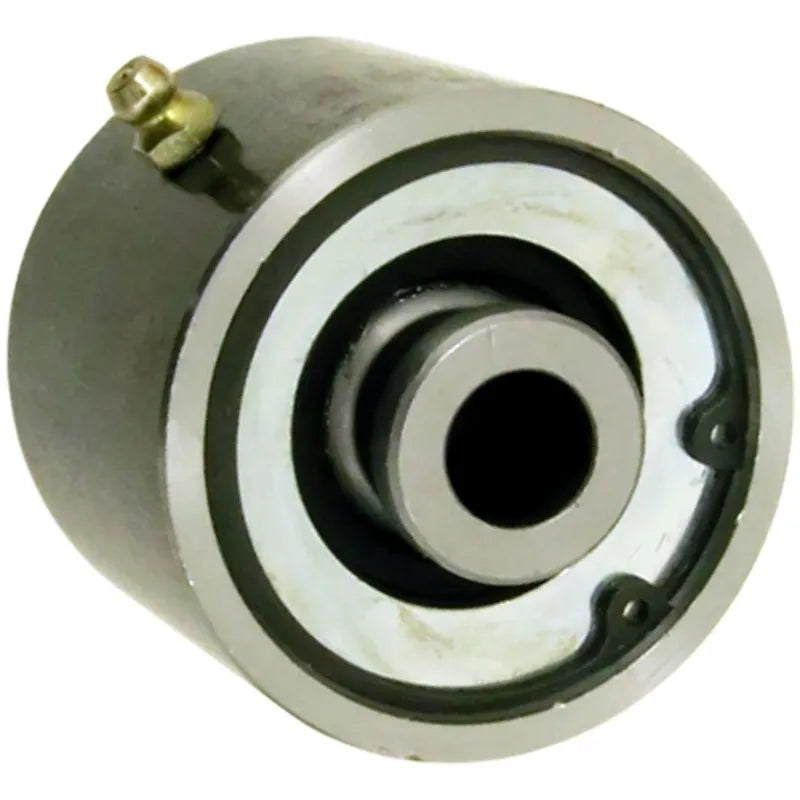

Narrow Johnny Joint Rod End 2 1/2 Inch Weld-On 2.365 Inch X 0.562 Inch Ball Externally Greased Each RockJock 4x4
SKU: R01U CE-9110NP-14
Easy — 1–2 hours
Description
Part #: CE-9110NP-14
RockJock's narrow style weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball.The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.The narrow style outer shell is weldable .180 Inch wall machined DOM tubingthat is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 Inch o.d. and features a 2.365 Inch mounting width and a .5625 Inch thru bolt hole.Details: Narrow Johnny Joint Rod End2 1/2 InchWeld-On2.365 Inch X 0.562 Inch BallExternally GreasedEach
Johnny Joint (R) Rod End | 2.5 Narrow Rod End | No Bolt
Fitment
Fitment Guaranteed
Don’t gamble
on fit.
Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.
Available on iOS & Android
Specifications
| Brand | Rock Jock |
| Part Number | R01U CE-9110NP-14 |
