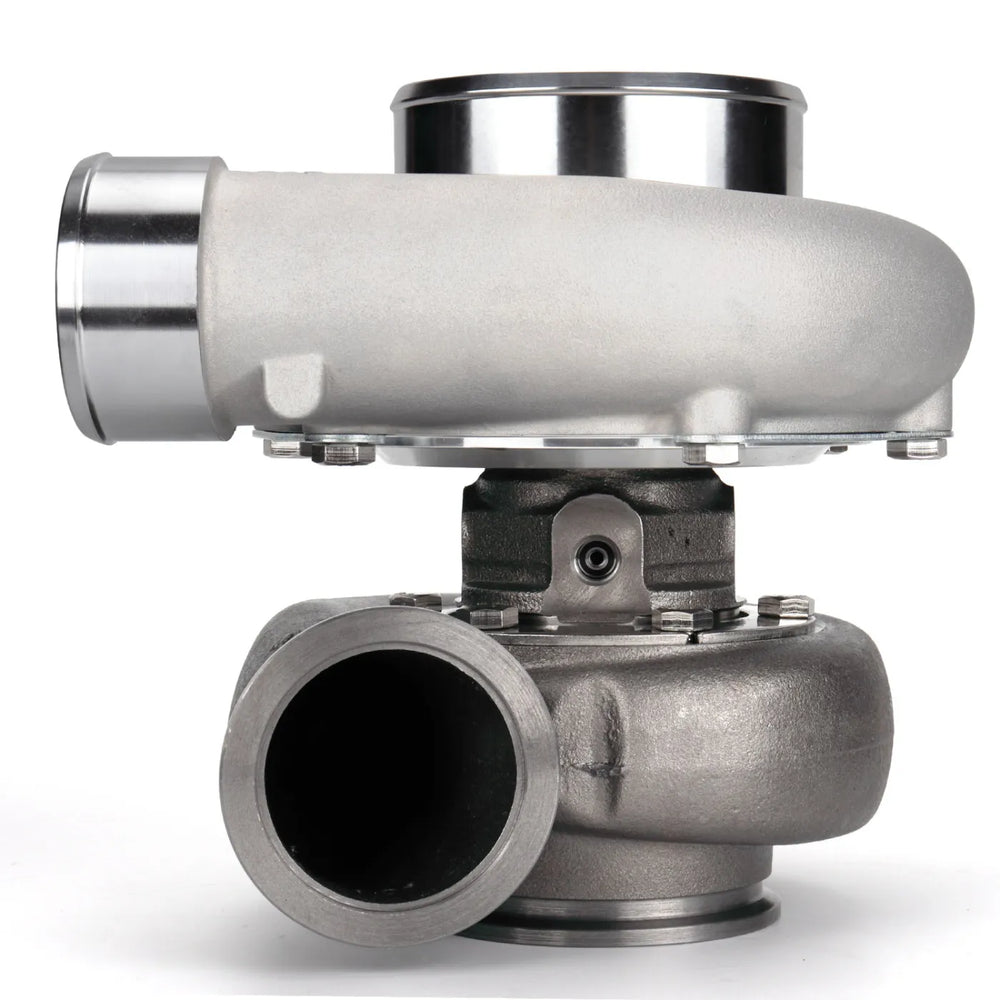

Next Gen 67/62 DBB Billet Turbocharger

The VSRacing Next Gen 67/62 DBB Billet is a high-performance, dual ball-bearing turbocharger engineered for efficient forced induction applications. It features a Gen2 compressor wheel with dimensions of 67mm by 84mm and a turbine wheel measuring 68mm by 62mm. The center section is both oil and water-cooled, ensuring thermal management during operation. Key physical specifications include a 4-inch compressor inlet and a 2.5-inch compressor outlet, with a 3-inch V-band discharge on the turbine housing across all available configurations. Buyers can choose from various turbine housing options, including T3 .82 A/R, T4 .82 A/R, and dual V-band options in .83 A/R or 1.01 A/R configurations, including reverse rotation variations. For proper installation, the manufacturer recommends utilizing their specific turbo installation package for the drain and water fittings to ensure correct operation. The unit requires appropriate V-band clamps and flanges for the turbine inlet and outlet, which are sold separately.
