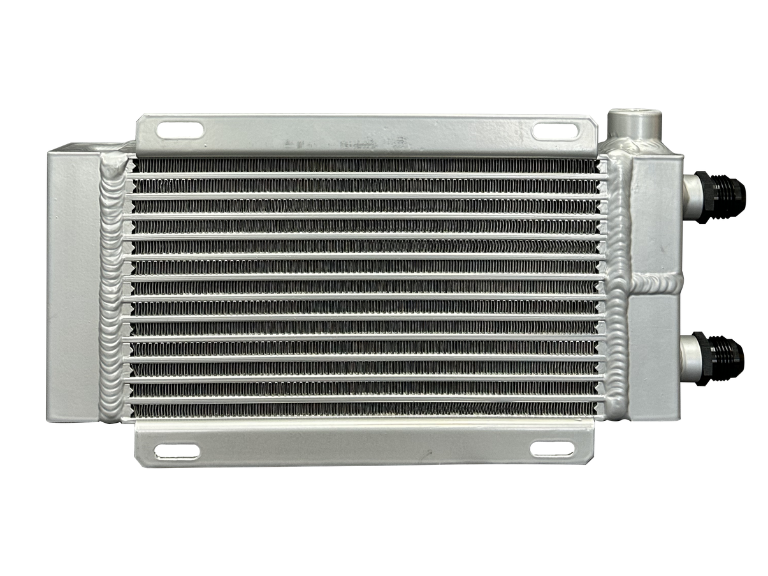

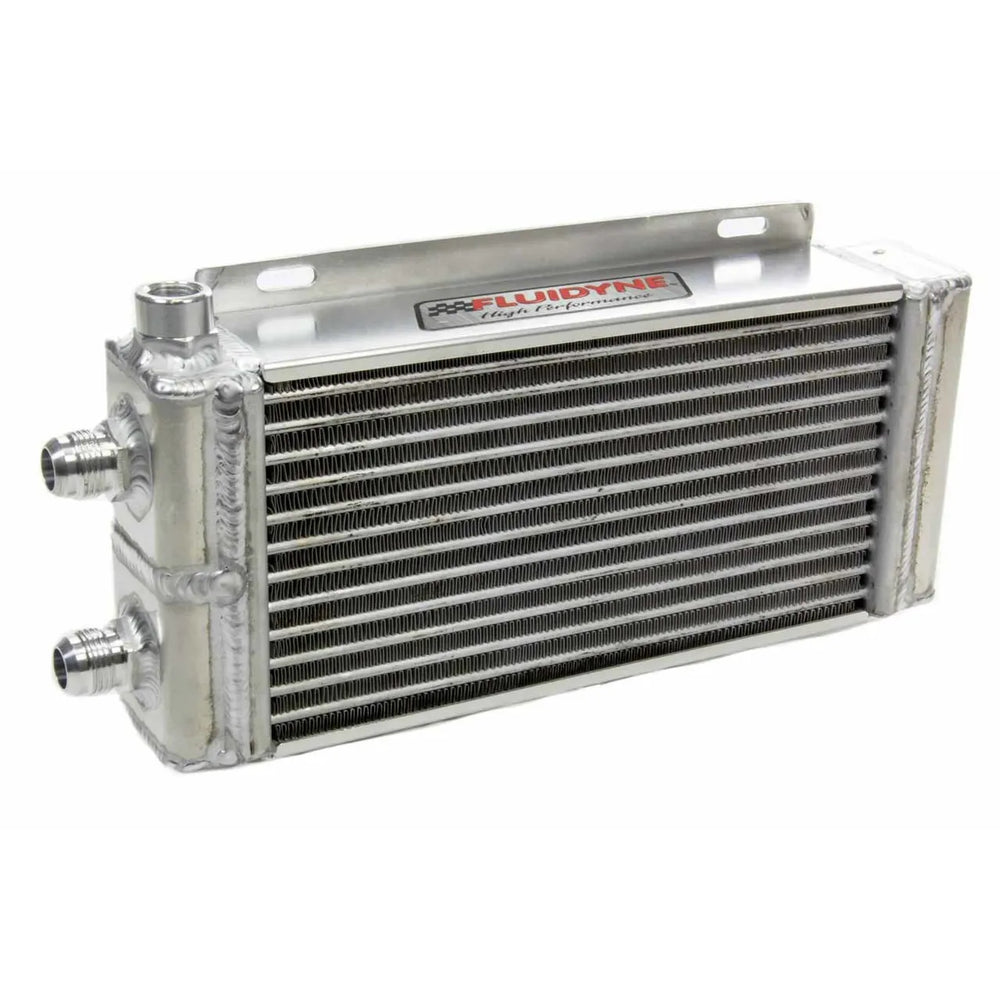

Oil Cooler 400 Series -12an Dbl Pass

Fluidyne Bar Plate 416/417 Series Oil Coolers are champions born from the demanding tests of both wind tunnels and race tracks. They boast optimal heat transfer characteristics with an exclusive fin design and densely packed structure to ensure the coolest oil temperatures possible while maintaining minimal pressure loss. Brazed in a vacuum furnace for zero leaks and a robust bond between the tube and heatsink. Features four mounting holes on the flanges for easy installation. This specific model (OGEN.DB-30417) is a Dual Pass cooler with 15 cooling rows, constructed from silver powder-coated aluminum. It includes two -10ORB to 12AN Custom Fittings with 12AN Diameter Internal. Great for oil, transmission, and supercharger heat exchangers.
