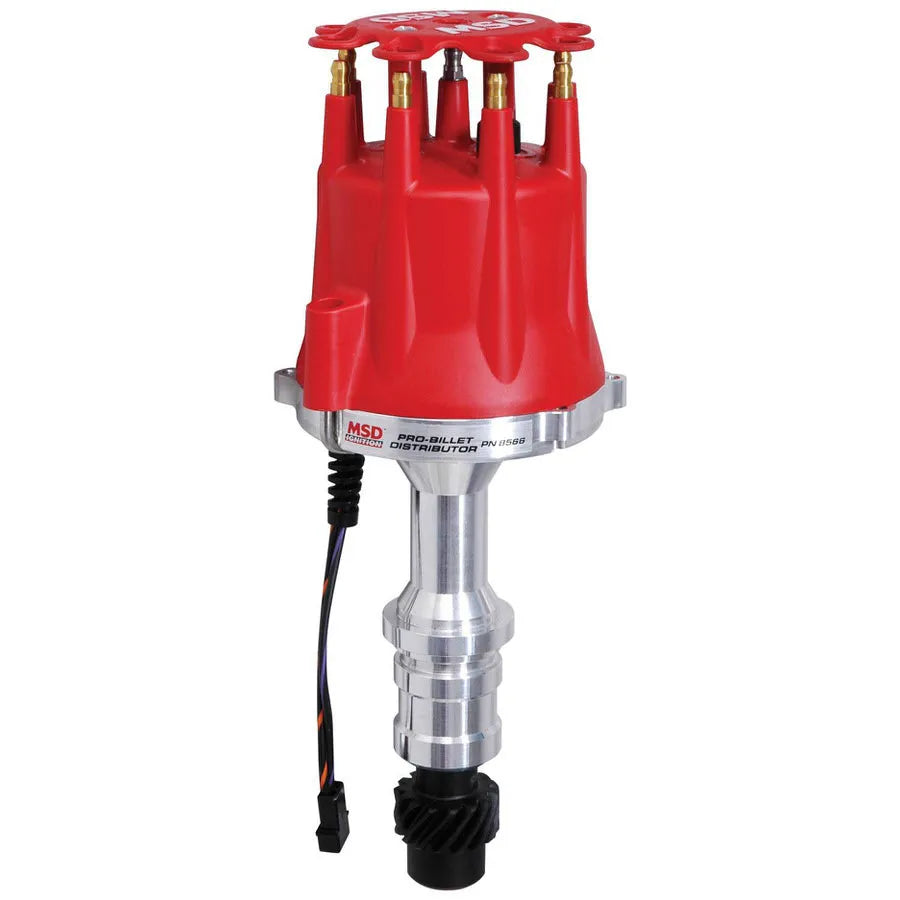

Oldsmobile V8 350-455 Distributor Fits Olds 260, 307, 330, 350, 400, 403, 425 And 455. Must Be Used With An MSD 6, 7 Or 8-Series Ignition MSD Ignition

Part #: 8566

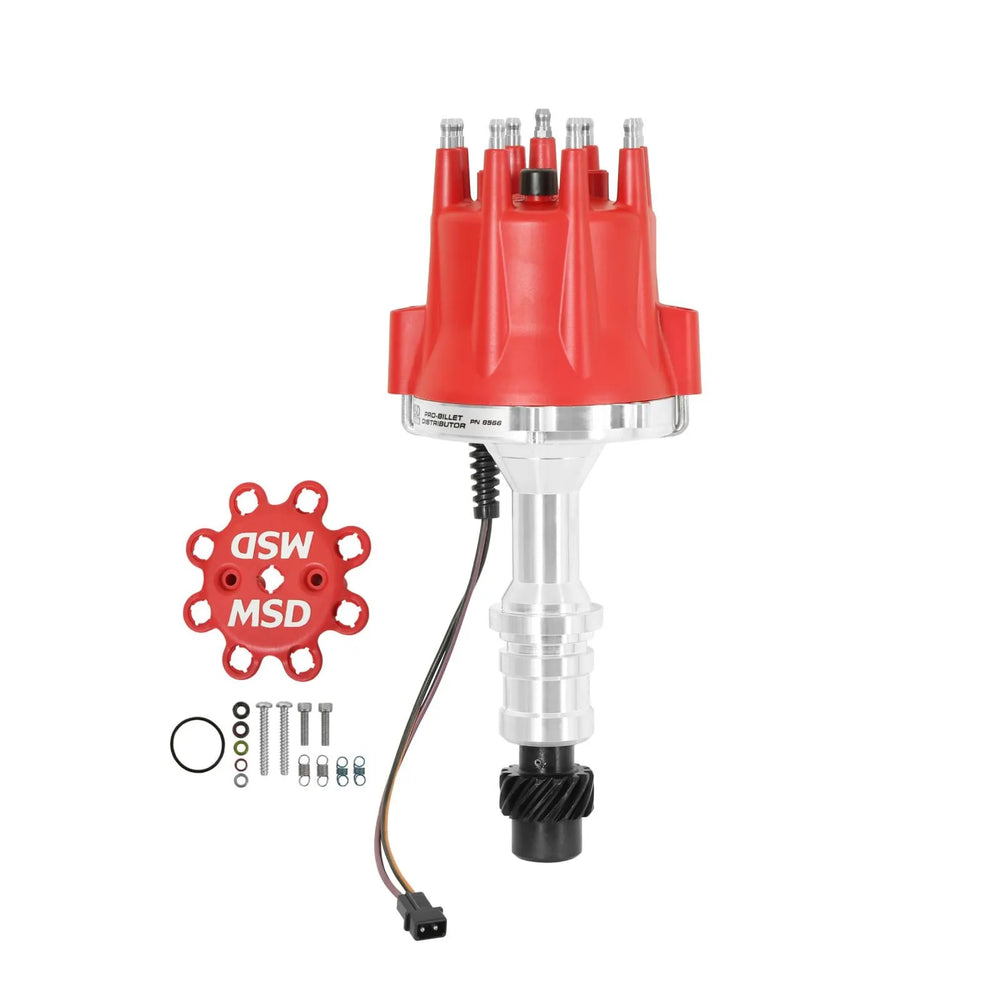

TIG-welded on top of the polished steel shaft is MSD's adjustable mechanical advance assembly. To accurately trigger the ignition, a high-output magnetic pick-up is bolted to the base. This trigger pick-up produces a precise trigger signal. An MSD red cap with brass terminals and Race Rotor are supplied.Sharing the CNC machining techniques with the rest of the MSD Distributor line, the Olds housing is machined from high quality 6061-T6 aluminum. Adding to this strength are two sealed ball bearings that guide the 0.500 Inch shaft accurately through 10,000+ rpm.CNC machined billet aluminum housing and billet aluminum baseMust be used with an MSD Ignition ControlAdvance weight pins are staked and tig welded to the plateEasy-to-adjust mechanical advance with supplied springs and stop bushingsWill not accept a vacuum advance canisterPolished steel shaft is QPQ coated and guided by two sealed ball bearingsNylon pads ensure smooth operation of the advance weightsMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeNo CARB Exemption Order NumberSupplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reductionMechanical advance assembly can be locked out for crank trigger systemsDetails:Distributor Cap Included: YesDistributor Type: Magnetic PickupEmission Code: 3Gear Material: Cast Iron Melonized QPQ CoatedIgnition Box Required: YesIgnition Coil Included: NoIgnition Rotor Included: YesWarranty: Manufacturer's Limited 1 Year Warranty

Features:

• CNC machined billet aluminum housing and billet aluminum base
• Will not accept a vacuum advance canister
• Must be used with an MSD Ignition Control
• Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
• Nylon pads ensure smooth operation of the advance weights
• Advance weight pins are staked and tig welded to the plate
• Mechanical advance assembly can be locked out for crank trigger systems
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Polished steel shaft is QPQ coated and guided by two sealed ball bearings
• Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• No CARB Exemption Order Number

Fits Olds 260, 307, 330, 350, 400, 403, 425 and 455. Must be used with an MSD 6, 7 or 8-series ignition.
