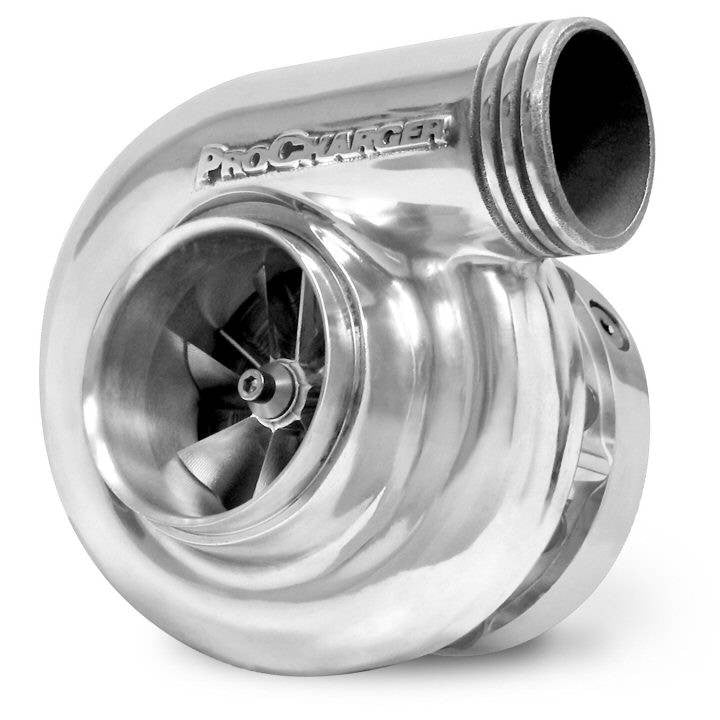

P-1SC Satin Supercharger Head Unit

The ATI/ProCharger P-1SC Satin Supercharger Head Unit is a leading choice for significant power gains, designed to be compatible with vehicles typically ranging from 200 to 500 naturally aspirated horsepower, while enabling a maximum supercharged output of 825 HP. This unit boasts a self-contained lubrication system, a proprietary feature that eliminates the need for tapping into the vehicle's oil pan or running external oil lines. This not only simplifies installation but also prevents potential issues like oil line clogs or leaks, contributing to greater reliability. Engineered with advanced technology, the P-1SC features exclusive billet impellers and billet gearcases for enhanced rigidity, sealing, and appearance. Its internal step-up ratio of 4.10:1 promotes improved belt tracking and traction, leading to maximum low-RPM boost and power delivery. The self-contained system utilizes a specially formulated synthetic oil, requiring changes only every 6,000 miles, and runs cooler than oil-fed designs, consuming less power and yielding a larger net power gain. Specifications include a maximum airflow of 1200 cfm, a maximum boost pressure of 30 psi, a 3.75-inch inlet diameter, and a 3-inch outlet diameter. The impeller can reach a maximum RPM of 62,000. This head unit is also available in a reverse rotation configuration, offering versatility for various engine setups. It is noted for being quiet and street-legal, making it a practical choice for performance enthusiasts.
