Engines and Components› Pistons and Piston Rings

OEM (Original Equipment Manufacturer)

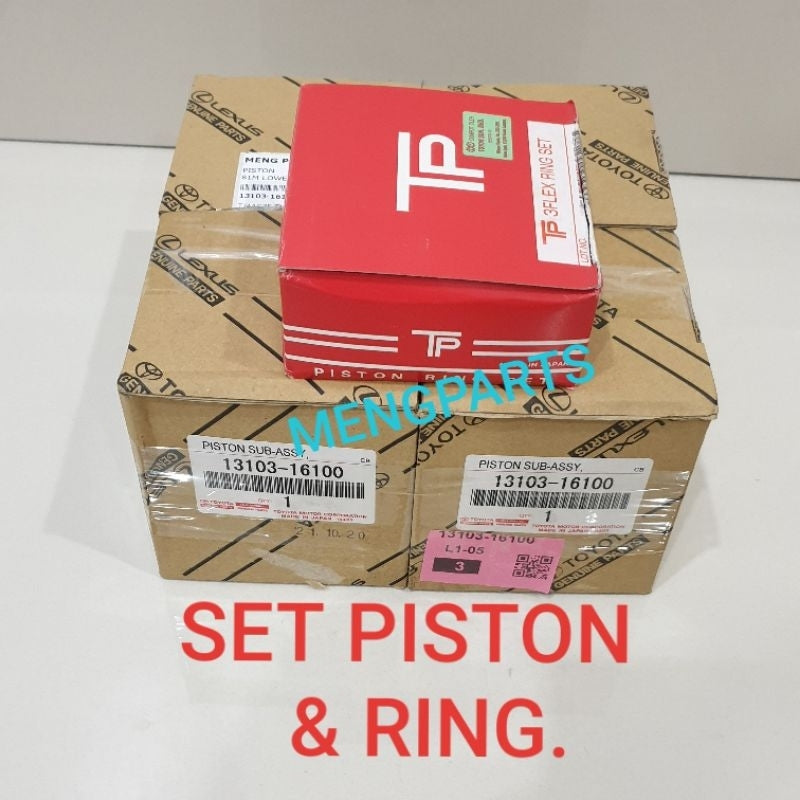

Piston Assembly with Pin

$111.26

SKU: 13103-16100

Special Order
Special Order
Ships in 4–6 weeks
Free Shipping over $200
$100 Minimum Order
30 Days Return
INSTALL DIFFICULTY
DIY PRO SHOP

Easy — 1–2 hours

Overview

The Toyota Piston Sub-Assembly with Pin is a genuine OEM replacement component designed for 1987-1989 Toyota MR2 vehicles. This new assembly serves as a direct replacement for part number 13103-16060 and is engineered to maintain factory specifications for engine performance and durability.
Show original supplier description
This part is a direct replacement for the 13103-16060 assembly and is specifically engineered for 1987-1989 Toyota MR2 models equipped with 1.6L 4AGELC or 4AGZE engines. It is a critical component for engine overhaul procedures, requiring a quantity of four for a complete engine service. As a genuine Toyota component, this sub-assembly is manufactured to meet rigorous durability and reliability standards. Installation requires careful attention to the engine's internal configuration, specifically ensuring that connecting rods and caps are properly identified. If original markings are absent, it is recommended to use a center punch to mark the rod caps to correspond with their respective cylinder numbers (1 through 4) during the rebuild process. Please note that this part is an individual piston assembly and does not include piston rings. Users should verify specific fitment requirements for their specific AW11 trim levels and engine codes before installation.

Product descriptions are provided by our supplier partners and may not always be perfectly accurate. Not sure this fits? or call (760) 282-4645 and we’ll verify before you order.

Fitment

Fitment Guaranteed

Don’t gamble
on fit.

Log your build in the MOTORMIA app and we’ll guarantee this part fits your exact setup — or your money back, return shipping covered.

Available on iOS & Android

Specifications

BrandOEM (Original Equipment Manufacturer)
Part Number13103-16100
CategoryEngines and Components
