Piston Kit

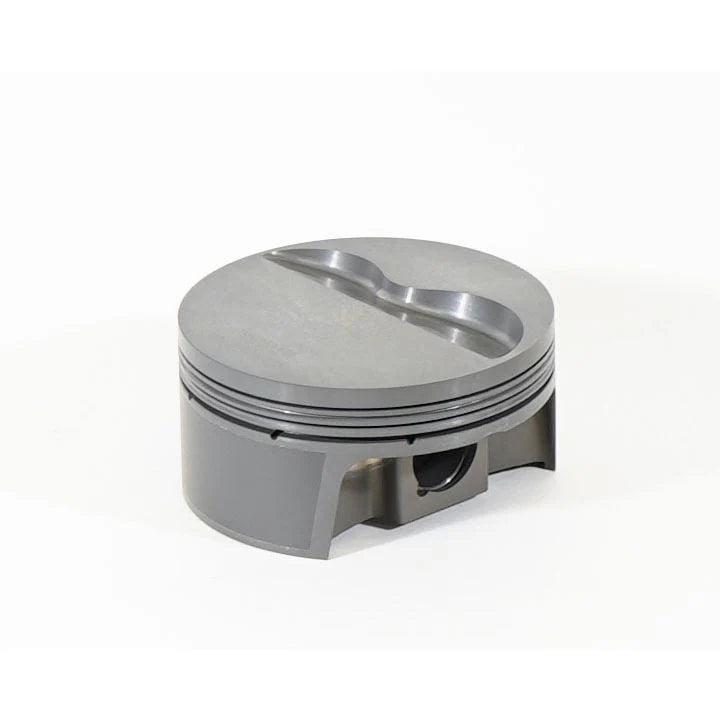

This is a Mahle Motorsport flat top single piston designed for Small Block Ford engines, specifically for 347 cubic inch displacement builds. It features a 4.125" bore, 1.165" compression height, suitable for a 3.250" stroke and 5.400" rod length, with a 0.927" pin diameter. The piston has a -6.5cc crown volume and weighs 437g. It is made from forged 2618 material and includes two valve reliefs. Piston ring thicknesses are 1.0mm, 1.0mm, and 2.0mm. The piston utilizes a floating pin style with a round wire clip. (Note: Some retailers sell this as a single piston, while others offer a set of 8 with included clips, pins, and rings. The provided specifications are for a single piston.)
