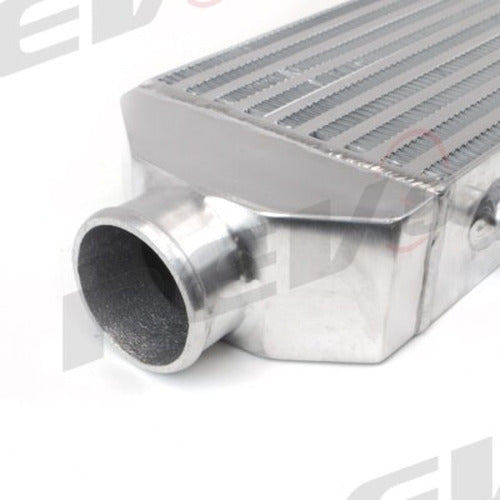

Power Type-M 20" x 6" x 2.5" Bar and Plate Aluminum Intercooler

The Rev9 Power Type-M Intercooler (IC-009) is a high-flow bar and plate intercooler designed for performance applications. It supports a maximum horsepower capacity of 200-350hp. Constructed from 100% aluminum, it features a polished finish and a machine-cut and stamped, hand-welded build.

This intercooler has a core size of 20" x 6" x 2.5" with 2.50" inlet and outlet sizes, and an end-to-end length of 28". It is rated for a maximum working pressure of 35-40 psi and has a pressure drop of 0.2-0.5 psi at 15 psi and 2-5 psi at 35 psi. The compressed air flow rate is 600 cubic feet per minute. The net weight is 11 lbs.
